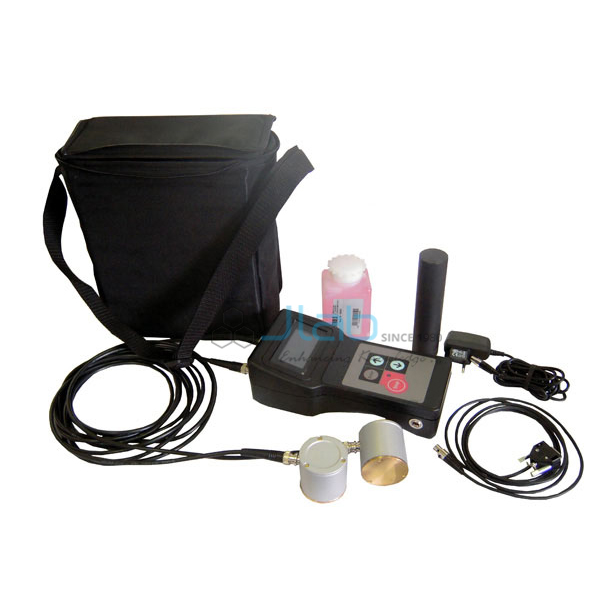

Ultrasonic Pulse Velocity Tester
Product Code : JA-M-8892
The Ultrasonic Pulse Velocity Tester (SKU JA-M-8892) evaluates the homogeneity of concrete without damaging it and is used to determine its dynamic elastic modulus. A transmitter sends an ultrasonic pulse through the member and the receiver times its arrival; the velocity then indicates the quality of the concrete. This ultrasonic pulse velocity tester reads transit times from 0.1 to 1999.9 microseconds and runs on an internal rechargeable battery. It is made by JaincoLab.
Specifications
Transit time is read from 0.1 to 1999.9 microseconds at 0.1 microsecond resolution, over a 24 to 150 kHz frequency range, with a 1200 V transmitter output and a selectable pulse rate.
| Product | Ultrasonic Pulse Velocity Tester |
| SKU | JA-M-8892 |
| Transit time range | 0.1 to 1999.9 microseconds |
| Resolution | 0.1 microseconds |
| Pulse rate | 1, 2, 5 or 10 per second, selectable |
| Transmitter output | 1200 V |
| Frequency range | 24-150 kHz |
| Receiver input impedance | 1 megohm |
| Display | 128 x 64 pixel digital display |
| Battery | Internal rechargeable 2400 mAh, 14 working hours; external charger |
| Weight | 0.5 kg tester; 2.3 kg complete set |
Applications of the ultrasonic pulse velocity tester
Pulse velocity drops where concrete is cracked, honeycombed or poorly compacted, so readings across a structure show where it is weaker.
- Checking uniformity and quality of concrete members
- Locating cracks, voids and poorly compacted zones
- Dynamic elastic modulus of concrete specimens
- Non-destructive testing practicals in civil engineering courses
- Condition surveys in materials testing laboratories
Scope of supply and ordering
The listing covers one ultrasonic pulse velocity tester set with its internal battery and external charger, from JaincoLab. Transducers, cables and calibration items in the set are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for the quantity and delivery destination. Testers are supplied singly or with concrete testing laboratory sets for colleges and tender orders.
Frequently asked questions
What range of transit time does it read?
0.1 to 1999.9 microseconds, at 0.1 microsecond resolution.
How is it powered?
By an internal rechargeable 2400 mAh battery giving 14 working hours, with an external charger.
What does the complete set weigh?
2.3 kg; the tester alone weighs 0.5 kg.
Related products
Rebound hammers and other concrete testing items are in the Materials range; chemistry apparatus is in the chemistry lab equipment catalogue.
Request a quote
To request a quotation for the Ultrasonic Pulse Velocity Tester, send the quantity and the delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-M-8892. For tender or project supply, see our tenders page.
