Ultrasonic Apparatus Set
Product Code : JA-SW-7690

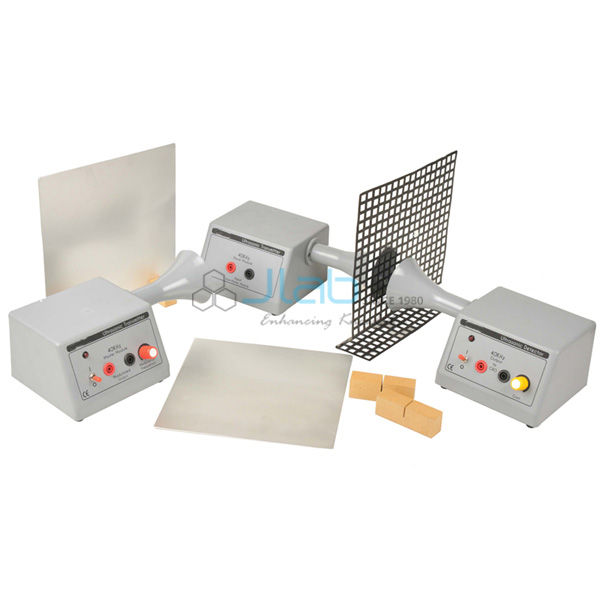

The Ultrasonic Apparatus Set (SKU JA-SW-7690) demonstrates the wave nature of sound at a relatively short wavelength. It operates at 40 kHz, giving a wavelength in air of approximately 8.3 mm, so reflection and interference patterns fit on a bench top. The set comprises an ultrasonic transmitter, a slave transmitter, a receiver and a mini set of two aluminium reflectors and a perforated plate, and it can also carry speech from a microphone or link to an FM radio. JaincoLab supplies this ultrasonic apparatus set to colleges and schools.
Specifications
The Ultrasonic Apparatus Set works at 40 kHz, a wavelength in air of about 8.3 mm, and comprises an ultrasonic transmitter, an ultrasonic slave transmitter, an ultrasonic receiver and a mini set of two aluminium reflectors with a perforated plate.
| Product | Ultrasonic Apparatus Set |
| SKU | JA-SW-7690 |
| Operating frequency | 40 kHz |
| Wavelength in air | Approx. 8.3 mm |
| Transmitters | Ultrasonic transmitter and ultrasonic slave transmitter |
| Receiver | Ultrasonic receiver |
| Accessories | Mini set of 2 aluminium reflectors and a perforated plate |
| Signal options | Transmit speech over the microphone, or set up a voice link with an FM radio |
Wave experiments with the 40 kHz ultrasonic apparatus
Because its wavelength is only about 8.3 mm, the ultrasonic set lets students measure wave behaviour on a bench: they reflect the beam from the aluminium reflectors, set up interference between the transmitter and slave transmitter, form standing waves between a transmitter and a reflector to measure the wavelength, and send speech on the ultrasonic beam.
- Reflection of ultrasonic waves from aluminium reflectors
- Interference between two coherent sources (transmitter and slave)
- Standing waves and wavelength measurement with a reflector
- Transmission through and around the perforated plate
- Carrying speech on the beam via the microphone or an FM radio link
Scope of supply and ordering
The set comprises the ultrasonic transmitter, slave transmitter, receiver and the mini set of two aluminium reflectors and perforated plate. Power arrangements, meters or oscilloscopes and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation according to the number of sets and the delivery destination. JaincoLab supplies ultrasonic and wave apparatus to colleges, schools and education programmes, and exports to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What frequency does the set operate at?
It operates at 40 kHz, giving a wavelength in air of approximately 8.3 mm.
What is included in the set?
An ultrasonic transmitter, a slave transmitter, a receiver and a mini set of two aluminium reflectors and a perforated plate.
Can it transmit speech?
Yes. Speech can be transmitted over the microphone, or a voice link can be set up with an FM radio.
Which topics can be investigated?
The wave nature of sound, including reflection and interference of sound waves.
