Simple Motor Circuit
Product Code : JA-EE-7555

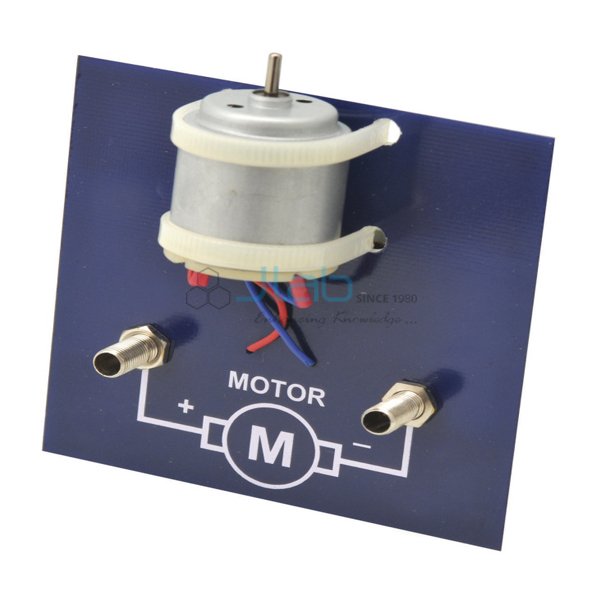

The Simple Motor Circuit (SKU JA-EE-7555) is a low-voltage DC motor mounted on a base with a series resistor that limits its current consumption, for energy and electricity experiments in school lessons. This simple motor circuit lets students run a motor straight from cells or a low-voltage supply and see electrical energy turned into motion without overloading the source. JaincoLab supplies it with matching LED and LDR circuit boards.
Specifications
The Simple Motor Circuit consists of a low-voltage DC motor on a base, wired with a series resistor that limits the current it draws; the operating voltage range, resistor value and connection type are confirmed on the quotation.
| Product | Simple Motor Circuit |
| SKU | JA-EE-7555 |
| Motor | Low-voltage DC motor |
| Mounting | On base |
| Current limiting | Series resistor to limit current consumption |
Applications of the simple motor circuit
The unit gives classes a ready motor load for circuit work: students switch it on and off, compare it with a lamp as an output device, reverse the supply to reverse the rotation, and control it from light-sensing circuits built with the LDR board.
- Electrical to kinetic energy demonstrations
- Reversing rotation by reversing the supply polarity
- Comparing a motor and a lamp as output devices
- Motor control from switch and sensor circuits
- Running from cells or a low-voltage supply
Scope of supply and ordering
The listing covers one simple motor circuit: a low-voltage DC motor on a base with its series resistor. Cells, leads and other boards are separate items. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for the quantity and destination. JaincoLab supplies circuit units singly or as class sets for schools and education projects.
Frequently asked questions
What does the Simple Motor Circuit consist of?
A low-voltage DC motor mounted on a base, with a series resistor to limit its current consumption.
Why is there a series resistor?
It limits the current the motor draws from the cells or supply.
What voltage does it need?
It is a low-voltage DC motor; the operating voltage is confirmed on the quotation.
Related products
Motor, LED and LDR circuit units are listed in electricity equipment from JaincoLab, a physics lab equipment manufacturer in India.
Request a quote
To order the Simple Motor Circuit, send the quantity and delivery destination through the JaincoLab contact page or email [email protected]. Institutions and contractors buying under a tender can also reach us via the tenders page.
