Self Inductance Bridge
Product Code : JA-SI-8044

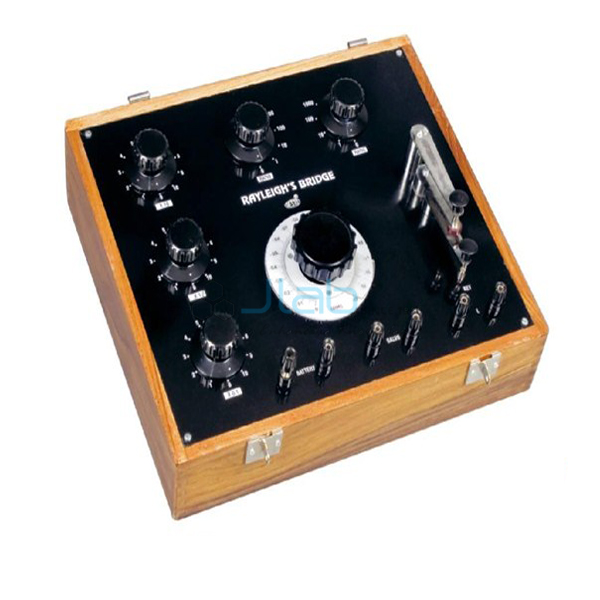

The Self Inductance Bridge (SKU JA-SI-8044) measures the self inductance of a coil and can also be used as an ordinary Wheatstone bridge. The ratio arm has two dials of 1, 10, 100 and 1000 ohm, and the resistance arm has three decade dials of 0.1, 1 and 10. A slide wire calibrated into 170 equal parts, with a 0.17 ohm slide resistance in series with the unknown inductance, eases calculation. A special double key is connected internally to the battery and galvanometer terminals.
Specifications
Arms, slide wire and key as listed:
| Product | Self Inductance Bridge |
| SKU | JA-SI-8044 |
| Ratio arm | Two dials of 1, 10, 100 and 1000 ohm each |
| Resistance arm | Three dials, decades of 0.1, 1 and 10 |
| Slide wire | Calibrated into 170 equal parts |
| Series slide resistance | 0.17 ohm, in series with the unknown inductance |
| Key | Special double key, internally connected to battery and galvanometer terminals |
| Dual use | Also works as a Wheatstone bridge |
Scope of supply and ordering
The bridge is supplied with its double key; source, detector, quantities and packing are confirmed on the quotation.
Frequently asked questions
Can the self inductance bridge be used as a Wheatstone bridge?
Yes, it also works as a Wheatstone bridge.
Why is the slide wire divided into 170 parts?
It pairs with the 0.17 ohm series slide resistance, which makes the calculation straightforward.
