Schering Bridge
Product Code : JA-SI-8080

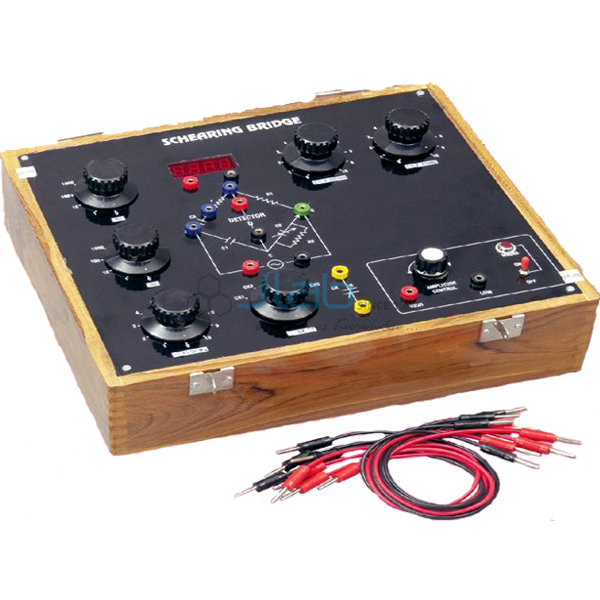

The Schering Bridge (SKU JA-SI-8080) measures unknown capacitance, together with the loss in the capacitor, against a fixed standard capacitor C2 of 0.001 mfd. The ratio arms R1 and R2 have steps of 1, 10, 100 and 1000 ohm, R is a decade dial of x1 ohm, and C1 is a two-decade dial of x0.001 and x0.01 mfd. A 1 kHz sine source with two output sockets and an amplitude indicating lamp and a digital null detector are built in. Five unknowns on the board are selected by a rotary switch.
Specifications
The listing gives these values:
| Product | Schering Bridge |
| SKU | JA-SI-8080 |
| AC source | 1 kHz sine wave, two output sockets, amplitude indicating lamp |
| Detector | Built-in null detector, digital display |
| R1, R2 | Ratio dials, 1, 10, 100 and 1000 ohm |
| R | Decade dial, x1 ohm |
| C1 | Two-decade dial, x0.001 and x0.01 mfd |
| C2 | Fixed internally at 0.001 mfd |
| Unknowns | Five, on the board, selected by rotary switch |
| Connections | 4 mm sockets, spread-out layout |
Experiments on the Schering bridge
- Measuring the capacitance of the five unknowns
- Finding the loss (dissipation) of each capacitor from the C1 balance
- Study of AC bridge balance with a capacitive standard
Scope of supply and ordering
The bridge is supplied with its source, detector and five unknowns. Leads, quantities and packing are confirmed on the quotation.
Frequently asked questions
What does the Schering bridge measure?
Unknown capacitance and the loss in the capacitor, against a fixed 0.001 mfd standard.
How many unknowns are provided?
Five, selected with a rotary switch on the board.
Does it have its own source and detector?
Yes, a 1 kHz sine source and a digital null detector are built in.
