Rotating Protractor Microwave Accessories
Product Code : JA-SW-7607

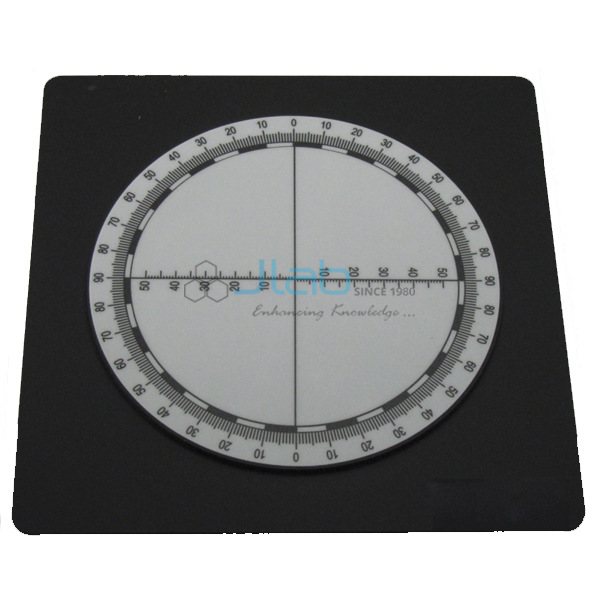

The Rotating Protractor (SKU JA-SW-7607) is a microwave accessory for measuring the directivity of microwave transmission, that is, how the received signal changes with angle around the transmitter. It provides the angular scale for microwave experiments carried out with a transmitter and receiver. JaincoLab supplies this rotating protractor with its microwave transmitter, receiver and optics accessories for college and senior-school physics laboratories.
Specifications
The Rotating Protractor is listed as an accessory for use in microwave experiments to measure the directivity of the microwave transmission; it is used with the microwave transmitter and receiver set, and its dimensions and construction are confirmed on the quotation.
| Product | Rotating Protractor Microwave Accessories |
| SKU | JA-SW-7607 |
| Type | Rotating protractor, microwave accessory |
| Purpose | Measuring the directivity of microwave transmission |
Microwave experiments with the rotating protractor
The rotating protractor is used to measure angles in microwave experiments, chiefly the directivity of the transmitted beam: receiver readings are taken at measured angles around the transmitter to map how the signal strength falls away from the axis of the beam.
- Measuring the directivity of the microwave transmission
- Reading angles in reflection and refraction experiments with microwave optics accessories
- Plotting received signal against angle
- College and senior-school microwave optics practicals
Scope of supply and ordering
The listing covers the rotating protractor. The microwave transmitter and receiver and the other accessories are listed separately. Dimensions, accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation according to the quantity and the delivery destination. JaincoLab supplies microwave accessories singly or in sets to colleges, schools and education projects, and exports to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What is the rotating protractor used for?
It is used in microwave experiments to measure the directivity of the microwave transmission.
Which equipment is it used with?
It is used with a microwave transmitter and receiver, listed separately as the Microwave Transmitter and Receiver.
Can it be ordered as part of a microwave set?
Yes. It can be quoted together with the transmitter and receiver, the set of plates, the hollow prism and the hollow plano-convex lens.
