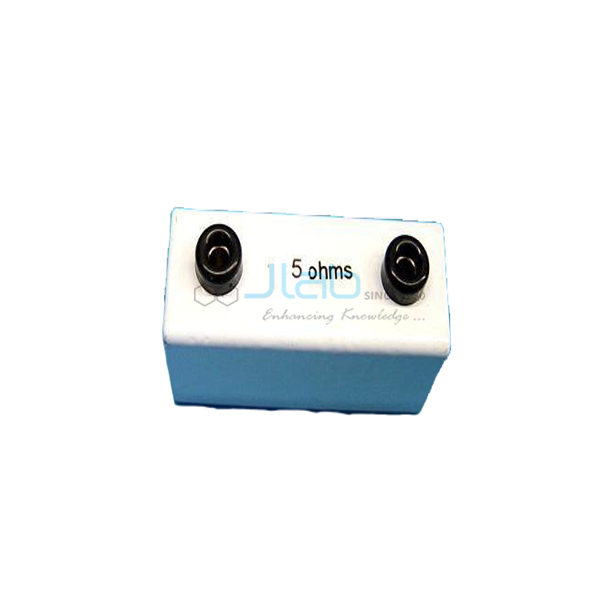

Resistance Coil 5 Ohm
Product Code : JA-EE-7501
The Resistance Coil 5 Ohm (SKU JA-EE-7501) is a 5 ohm resistance unit supplied as a block with 4 mm sockets, so a known low resistance can be plugged into any circuit in basic electrical experiments. This 5 ohm resistance coil for the physics lab fills the gap between the 2 and 10 ohm units, which helps classes build combinations with easy-to-check totals. JaincoLab supplies it for school and college practicals.
Specifications
The Resistance Coil 5 Ohm is a 5 ohm resistance in block form with 4 mm sockets, taking the place of a loose resistor so that students connect it directly with 4 mm plug leads; tolerance and power rating are confirmed on the quotation.
| Product | Resistance Coil 5 Ohm |
| SKU | JA-EE-7501 |
| Resistance | 5 ohm |
| Form | Resistance unit (block) |
| Connections | 4 mm sockets |
| Use | Known resistance for basic electrical experiments |
Applications of the 5 ohm resistance coil
The 5 ohm coil is used in practicals where students predict the total resistance of a combination and confirm it with meters, and as a modest load when measuring the current and terminal voltage of cells and low-voltage supplies.
- Predicting and measuring totals of series and parallel combinations
- Load resistance for cell and power supply measurements
- Ohm's law readings at low voltage
- Comparing measured current with calculated values
- Class sets for 4 mm modular circuits
Scope of supply and ordering
The listing covers one 5 ohm resistance unit with 4 mm sockets. Other values, leads and meters are separate items. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation according to quantity, values and delivery destination. JaincoLab supplies resistance units singly or in mixed sets for schools, colleges and training institutes.
Frequently asked questions
What resistance does the coil give?
It gives 5 ohm.
How is it connected?
Through 4 mm sockets on the block.
Which values sit either side of it in the range?
The 2 ohm and 10 ohm coils; 1, 20, 50 and 100 ohm units are also listed.
