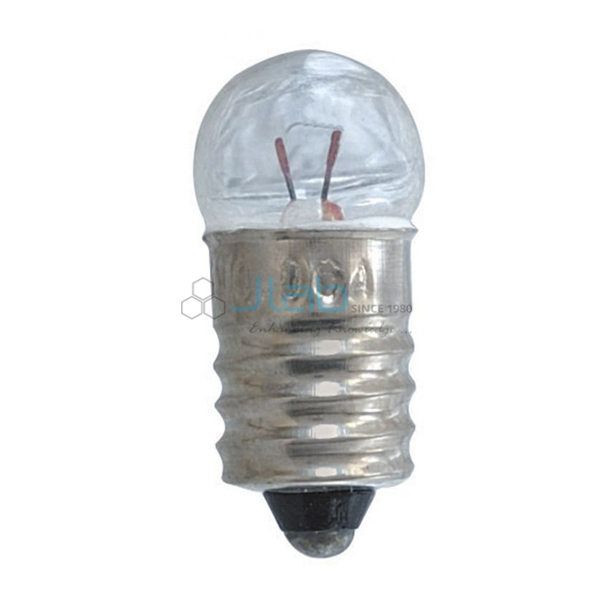

MES lamp Bulb 6 V
Product Code : JA-EE-7408
The MES lamp Bulb 6 V (SKU JA-EE-7408) is a miniature Edison screw lamp rated 6 V, 60 mA, for circuits powered by four cells in series or by the 6 V setting of a low-voltage supply. With its low current draw it suits battery circuits that must run for a whole lesson. The bulb is 11 mm in diameter and 23 mm long, offers about 100 hours of life and is supplied singly for school and college electricity work.
Specifications
The lamp is a 6 V, 60 mA MES bulb, 11 mm in diameter and 23 mm long overall, with about 100 hours life, supplied in singles.
| Product | MES lamp Bulb 6 V |
| SKU | JA-EE-7408 |
| Cap | MES (miniature Edison screw) |
| Rating | 6 V, 60 mA |
| Diameter | 11 mm |
| Overall length | 23 mm |
| Life | About 100 hours |
| Supply | Singles |
Uses of the 6 V MES lamp bulb
Rated at 6 V but drawing only 60 mA, this bulb matches four-cell battery packs and 6 V supply outputs while keeping battery drain low, which makes it useful for longer practical sessions.
- Four-cell battery circuits with 4 x AA holders
- Lamp circuits on the 6 V output of a low-voltage supply
- Series and parallel lamp investigations
- Replacement bulbs for circuit kits and boards
- Secondary school electricity practicals
Scope of supply and ordering
The listing covers 6 V, 60 mA MES lamp bulbs supplied singly. Holders, cells and power supplies are separate items. Quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation according to the quantity and the delivery destination. JaincoLab supplies consumable stock for schools and colleges, bulk education-project orders and export consignments to buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What is the rating of the 6 V bulb?
6 V, 60 mA.
What are its dimensions?
11 mm in diameter and 23 mm overall length, with an MES cap.
Related products
See the Electricity Equipment range from JaincoLab, a physics lab equipment manufacturer in India.
Request a quote
To order the MES lamp Bulb 6 V, send the number of bulbs and delivery destination through the JaincoLab contact page or email [email protected]. For tender or project supply, see our tenders page.
