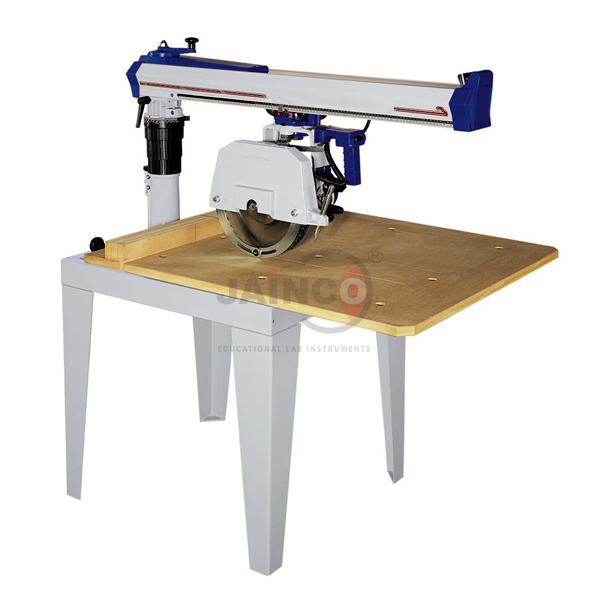

Radial Cross Cutting Machine
Product Code : JA-WWPT-8712
The radial cross cutting machine is a heavy radial saw for cross-cutting and trimming timber in joinery workshops. It is listed with a 4.5 HP motor at 2900 rpm, 12-inch (305 mm) or 14-inch (355 mm) blades on a 1-inch (25.4 mm) bore, a head that swivels 0 to 180° and tilts 0 to 90°, 860 mm trimming width and 620 mm cross-cutting length on a 900 x 1100 mm table (SKU JA-WWPT-8712).
Specifications
Listed specification:
| Product | Radial Cross Cutting Machine |
| SKU | JA-WWPT-8712 |
| Motor | 4.5 HP, 2900 rpm |
| Blade diameter | 12 inch (305 mm) or 14 inch (355 mm) |
| Spindle bore | 1 inch (25.4 mm) |
| Head swivel | 0 to 180° |
| Head tilt | 0 to 90° |
| Maximum trimming width | 860 mm |
| Maximum cross-cutting length | 620 mm |
| Table area | 900 x 1100 mm |
| Rail bearings | 8 |
| Machine size | 1120 x 1100 x 1170 mm |
| Net weight | 200 kg |
Scope of supply and ordering
The listing covers one radial cross cutting machine, supplied by JaincoLab. Quantities, packing and lead time are confirmed on the quotation.
Frequently asked questions
Which blade sizes does it take?
12-inch (305 mm) or 14-inch (355 mm) blades on a 1-inch bore.
How far does the head swivel and tilt?
It swivels from 0 to 180° and tilts from 0 to 90°.
Related products
Browse the full wood workshop machine range for related items.
Request a quote
Request a quotation for the Radial Cross Cutting Machine (SKU JA-WWPT-8712) through the JaincoLab contact page. For tender or project supply, see our tenders page.
