Plasma Extractor
Product Code : JA-LS-2317

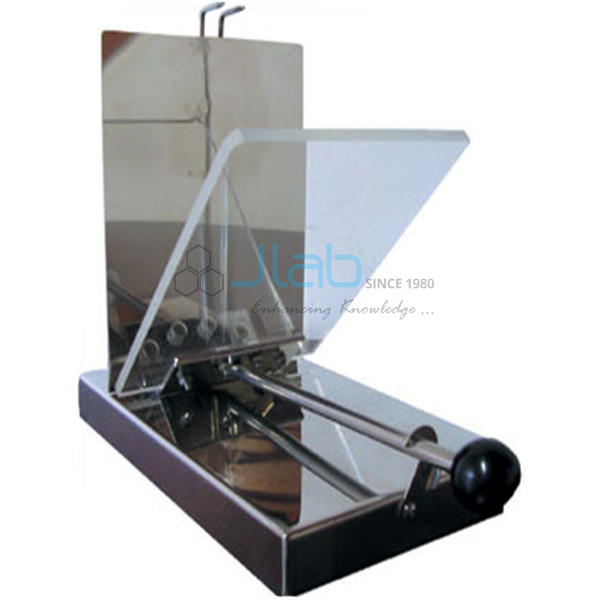

The Plasma Extractor (SKU JA-LS-2317) is a manual press supplied by JaincoLab for expressing separated blood components from a blood collection bag into its satellite bags. The main bag is placed between a fixed stainless steel plate and a movable transparent plate, and a power spring presses the plates together so that the fluid flows into the designated satellite bag; the transparent plate lets the bag be seen during expression. It takes bags of 100 to 400 ml.
Specifications
Dimensions, weights and the clamping force listed are shown below.
| Product | Plasma Extractor |
| SKU | JA-LS-2317 |
| Use | Expressing blood components from collection bags into satellite bags |
| Operation | Manual, spring loaded |
| Plates | Fixed stainless steel plate and movable transparent plate |
| Clamping force | 20 N |
| Blood bags | 100, 200, 300 and 400 ml |
| External size (W x D x H) | 165 x 250 x 250 mm |
| Net weight | 2.5 kg |
| Gross weight | 2.8 kg |
| Package size (W x D x H) | 310 x 310 x 240 mm |
Where it is used
- Separating plasma and other components after centrifugation of whole blood in blood bank practice
- Medical laboratory technology and transfusion training
Scope of supply and ordering
The extractor is supplied by JaincoLab as listed; quantity and dispatch are confirmed on the quotation. Supply is subject to the buyer holding any licence or authorisation that applies to this item in the destination country.
Frequently asked questions
Which bag sizes does it take?
Blood bags of 100, 200, 300 and 400 ml.
How is pressure applied?
A power spring presses the movable transparent plate against the bag, with a clamping force of 20 N.
How heavy is it?
2.5 kg net, 2.8 kg packed.
Related products
Other laboratory items are in the JaincoLab lab supplies range.
Request a quote
Ask for a quotation on the Plasma Extractor (JA-LS-2317) through our contact page. Tender and project enquiries can be sent through the tenders page.
