Parallelogram of Forces Board
Product Code : JA-FMDE-9441

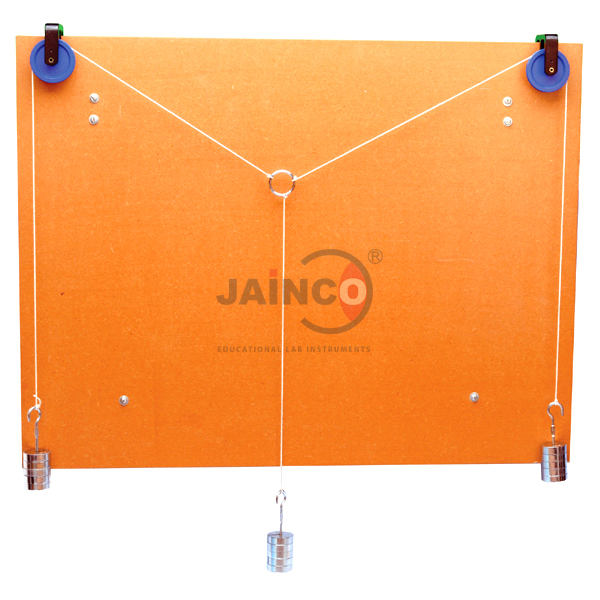

The Parallelogram of Forces Board (SKU JA-FMDE-9441) is a vertical force board used to verify the relationship between forces acting at a point. This parallelogram of forces board with pulleys has a 65 x 50 cm board, two 50 mm aluminium pulleys that clamp in any position, three nickel-plated weight hangers and twelve 50 g slotted weights. JaincoLab makes it for school and college mechanics practicals on the addition of forces.
Specifications
The board measures 65 x 50 cm and carries two aluminium pulleys of 50 mm diameter on clamps that can be fixed in any position; it is supplied complete with three iron, nickel-plated 50 g hangers and 12 slotted weights of 50 g each.
| Product | Parallelogram of Forces Board |
| SKU | JA-FMDE-9441 |
| Board size | 65 x 50 cm |
| Pulleys | Two, aluminium, 50 mm diameter, with clamps for mounting in any position |
| Weight hangers | Three, iron, nickel-plated, 50 g each |
| Slotted weights | 12 x 50 g |
| Purpose | Verifying the relationship between forces acting at a point |
Applications of the parallelogram of forces board
The board is used for vector addition practicals in which three forces act at one point in equilibrium, so that students can draw the forces to scale and check the parallelogram law against their measurements.
- Verifying the parallelogram law of forces for two forces acting at a point
- Finding the resultant of two forces and comparing it with the balancing third force
- Finding the weight of an unknown body using the parallelogram law of vectors
- Changing the angle between forces by re-clamping the pulleys in new positions
- Mechanics practicals in senior secondary and first-year college physics
Scope of supply and ordering
The listing covers the 65 x 50 cm board with two clamp-mounted 50 mm aluminium pulleys, three nickel-plated 50 g hangers and 12 slotted weights of 50 g. String, a drawing sheet and any additional masses are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation according to the quantity and the delivery destination. JaincoLab supplies single boards, class sets for schools and colleges and bulk education orders, including export consignments to buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What size is the Parallelogram of Forces Board?
The board measures 65 x 50 cm.
Which weights and hangers are included?
Three iron, nickel-plated hangers of 50 g each and 12 slotted weights of 50 g each.
Can the pulleys be moved?
Yes. The two 50 mm aluminium pulleys are fitted with clamps for mounting in any position on the board.
