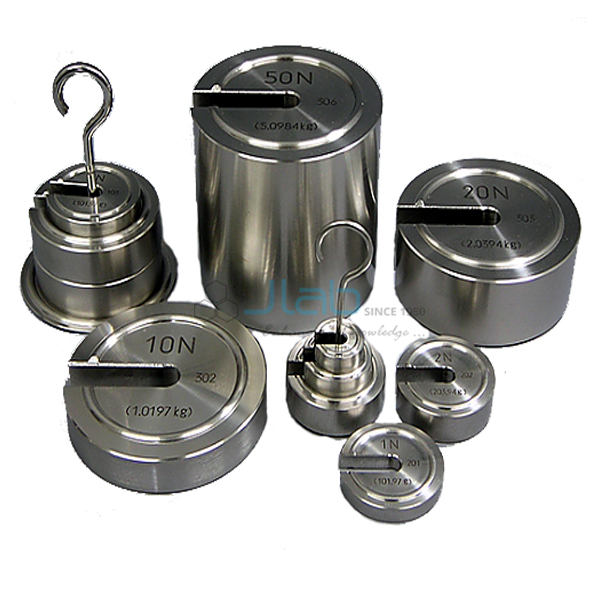

Newton Weights
Product Code : JA-MI-4926
The Newton Weights (SKU JA-MI-4926) are slotted Newton weights in a 1:2:5 series, from 0.1 N to 200 N, for building up any load in steps of 0.1 N. All weights are slotted so that they stack on a load hanger, and each is marked with its value. The 0.1 N and 0.2 N weights are pressed steel, and all larger weights are cast iron, individually corrected to within 0.5%. They are supplied by JaincoLab for structures, strength-of-materials and mechanics laboratories.
Specifications
The weights run from 0.1 N to 200 N in a 1:2:5 series, are slotted and marked, with pressed steel 0.1 and 0.2 N weights and cast iron weights corrected to within 0.5%; sizes are listed below as diameter x thickness.
| Product | Newton Weights |
| SKU | JA-MI-4926 |
| Series | 1:2:5 system, loads from 0.1 N to 200 N and above in 0.1 N steps |
| Material | 0.1 N and 0.2 N pressed steel; others cast iron |
| Accuracy | Cast iron weights individually corrected to within 0.5% |
| Design | Slotted to stack on a load hanger; each marked with its value |
| 0.1 N / 0.2 N | 0.01 kg, 36 x 2 mm / 0.02 kg, 36 x 3 mm |
| 0.5 N / 1 N / 2 N | 0.05 kg, 35 x 11 mm / 0.10 kg, 45 x 11 mm / 0.20 kg, 58 x 13 mm |
| 5 N / 10 N / 20 N | 0.51 kg, 82 x 15 mm / 1.02 kg, 108 x 17 mm / 2.04 kg, 127 x 27 mm |
| 50 N / 100 N / 200 N | 5.1 kg, 159 x 42 mm / 10.2 kg, 184 x 60 mm / 20.4 kg, 260 x 60 mm |
Uses of the slotted Newton weights
Weights marked in newtons let students apply known forces directly, without converting from kilograms, and the 1:2:5 series makes any load easy to build.
- Loading beams, trusses and frames in structures experiments
- Strength-of-materials tests on springs, wires and columns
- Moments, equilibrium and friction experiments in mechanics laboratories
- Physics practicals that use force in newtons
Scope of supply and ordering
The listing covers slotted Newton weights in the values ordered. Weight hangers and the storage trolley are separate items. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the values and quantity and the delivery destination. Single weights, complete sets and bulk quantities for engineering and physics laboratories are supplied.
Frequently asked questions
What range of loads can be made?
Any load from 0.1 N to 200 N and above, in steps of 0.1 N, using the 1:2:5 series.
What are the weights made of?
The 0.1 N and 0.2 N weights are pressed steel; all others are cast iron.
How accurate are they?
The cast iron weights are individually corrected to within 0.5%.
