Laboratory Oven
Product Code : JA-MI-8770

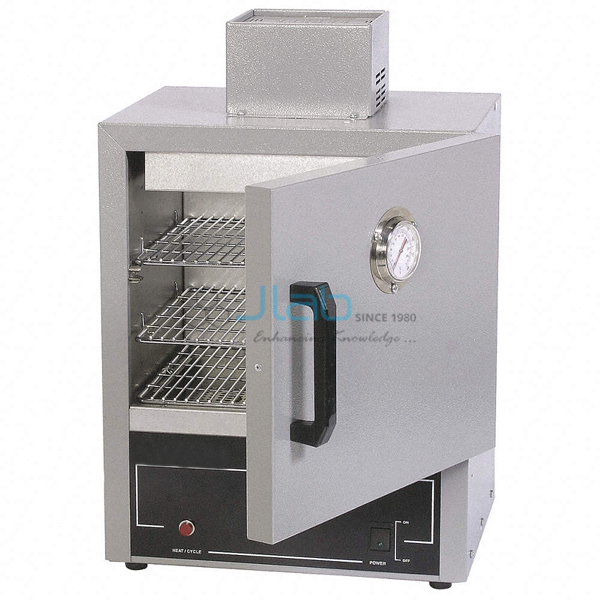

The Laboratory Oven (SKU JA-MI-8770) is a double-walled laboratory drying oven for drying and heating work from ambient to 250°C with ±1°C control. The inner chamber is aluminium or stainless steel with 60 to 75 mm glass wool insulation, and heating elements of resistance wire are fitted along all sides. Temperature is set by a hydraulic capillary thermostat and read on an L-shaped thermometer at the front. It is supplied by JaincoLab in single-phase 230 V or three-phase 440 V versions for college, research and industrial laboratories.
Specifications
The oven works from ambient to 250°C (±1°C) with a hydraulic capillary thermostat, has an aluminium or stainless steel inner chamber with 60 to 75 mm glass wool insulation, and is listed in cabinet sizes from 3 x 2 x 2 ft to 5 x 4 x 4 ft.
| Product | Laboratory Oven |
| SKU | JA-MI-8770 |
| Temperature range | Ambient to 250°C, ±1°C |
| Construction | Double walled; aluminium or stainless steel inner chamber |
| Insulation | 60 to 75 mm glass wool |
| Door | Heavy chrome-plated hinges |
| Trays | Adjustable steel, aluminium or wire mesh |
| Control | Hydraulic capillary thermostat |
| Indication | L-shaped thermometer at the front; two pilot lamps |
| Heating | Resistance wire elements along all sides |
| Power supply | Single phase 230 V AC or three phase 440 V AC |
| Sizes listed | 3 x 2 x 2 ft, 3 x 3 x 3 ft, 4 x 2 x 2 ft, 4 x 3 x 3 ft, 5 x 2 x 2 ft, 5 x 3 x 3 ft, 5 x 4 x 4 ft, 5 x 4 x 3 ft |
| Options | Air circulation fan, digital temperature indicator-controller, alarm; high-temperature versions up to 350°C |
Applications of the laboratory drying oven
A laboratory oven dries glassware, samples and materials at a controlled temperature, and is a basic item in chemistry, pharmacy and materials laboratories.
- Drying glassware and apparatus after washing
- Drying samples to constant mass in analytical work
- Moisture determination in soil, food and materials testing
- Drying and heat treatment work in pharmacy and research laboratories
Scope of supply and ordering
The listing covers the oven with thermostat, thermometer, pilot lamps, plug pins and adjustable trays. The air circulation fan, digital indicator-controller and alarm are optional, and a stainless steel chamber is advised for work at 200°C and above. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the size, supply and quantity and the delivery destination. Single ovens and multiple units for laboratories and tenders are supplied.
Frequently asked questions
What temperature does it reach?
Ambient to 250°C with ±1°C control; high-temperature versions up to 350°C are also listed.
Which chamber material should I choose?
Aluminium or stainless steel; for work at 200°C and above a stainless steel chamber is advised.
Which power supplies are available?
Single phase 230 V AC or three phase 440 V AC.
Can a digital controller be fitted?
Yes. A digital temperature indicator-controller, air circulation fan and alarm can be fitted as options.
Related products
This oven is listed in the JaincoLab measuring instruments range.
Request a quote
To order the Laboratory Oven, send the size, chamber material, options, quantity and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-MI-8770. Buying under a laboratory tender? Use our tenders page.
