Millipore Type Membrane Filter
Product Code : JA-ELA-5509

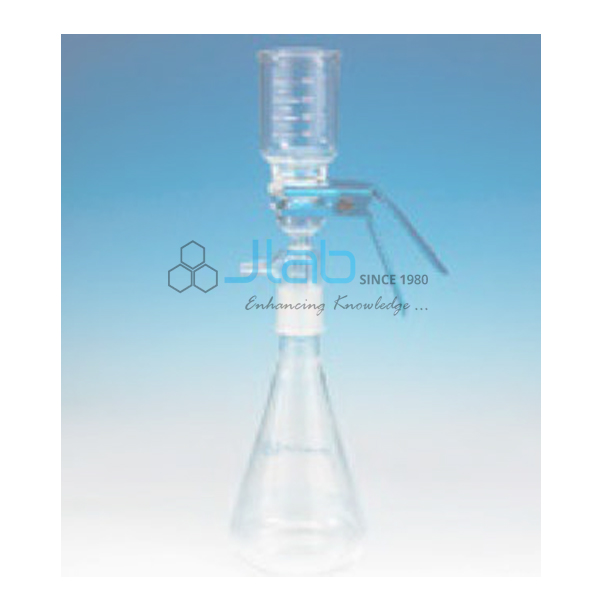

The Millipore Type Membrane Filter (SKU JA-ELA-5509) is a glass vacuum filtration assembly supplied by JaincoLab for filtering liquids through 47 mm membrane filters. The funnels are made entirely of borosilicate glass, so they resist the solvents used in chromatography and chemical analysis. With the 1 litre funnel on its support assembly a whole litre can be filtered at one go, and the base has a built-in vacuum connection placed so that filtrate cannot be drawn into the vacuum line.
Specifications
The funnel sizes, graduations and fittings given in the listing are shown below.
| Product | Millipore Type Membrane Filter |
| SKU | JA-ELA-5509 |
| Material | Borosilicate glass |
| Membrane size | 47 mm |
| 1 litre funnel | Graduated 300 to 1000 ml in 50 ml steps |
| 300 ml funnel | Graduated 100 to 250 ml in 25 ml steps |
| Base | Support assembly with built-in vacuum connection |
| Stopper | Standard single-hole stopper, 9 mm hole, for the stepped stem |
Where it is used
- Filtering solvents for HPLC and other chromatography
- Collecting particles or microorganisms on a membrane for analysis
- Clarifying solutions before instrumental analysis
Scope of supply and ordering
The assembly is supplied by JaincoLab with the funnel size you choose; membranes, flasks, clamp, quantity and packing are confirmed on the quotation.
Frequently asked questions
What size of membrane does it take?
47 mm membrane filters.
How much can the large funnel hold?
1 litre; it is graduated from 300 to 1000 ml in 50 ml steps.
How is filtrate kept out of the vacuum line?
The base has a built-in vacuum connection designed to prevent filtrate reaching the line.
Related products
Filtration and sample preparation items are in the educational laboratory apparatus range.
Request a quote
Tell us which funnel size you need for the Millipore Type Membrane Filter (JA-ELA-5509) via the contact page. Tender and project enquiries can be sent through the tenders page.
