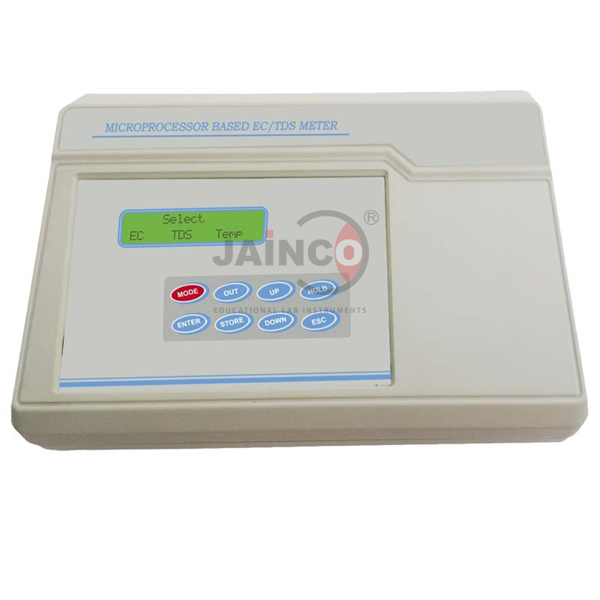

Microprocessor Conductivity/TDS Meter
Product Code : JA-CM-2190
The Microprocessor Conductivity/TDS Meter (SKU JA-CM-2190) is a bench instrument for conductivity, total dissolved solids and temperature. This microprocessor TDS meter chooses its conductivity and TDS range automatically, keeps up to 90 readings in memory and can send them to a dot matrix printer. It is supplied by JaincoLab to agriculture and soil laboratories, water works, boiler houses and process laboratories.
Specifications
The meter reads conductivity from 0-20 µS to 0-200 mS at ±0.5% FS ±1 digit and TDS from 0-20 ppm to 0-200 ppt at ±1% FS ±1 digit, both ranged automatically, with temperature shown from 0 to 100 °C.
| Product | Microprocessor Conductivity/TDS Meter |
| SKU | JA-CM-2190 |
| Conductivity | 0-20 and 0-200 µS, 0-2, 0-20 and 0-200 mS, automatic ranging; resolution 0.01 µS; accuracy ±0.5% FS ±1 digit |
| TDS | 0-20 and 0-200 ppm, 0-2, 0-20 and 0-200 ppt, automatic ranging; resolution 0.01 ppm; accuracy ±1% FS ±1 digit |
| Temperature | 0 to 100 °C; resolution 0.1 °C |
| Cell constant | Adjustable, 0.05 to 10.5 |
| Temperature compensation | Automatic or manual, 0-50 °C |
| Temperature coefficient | Adjustable, 0.1 to 4.0% |
| Display | 16 x 2 line alphanumeric LCD |
| Sample memory | Up to 90 readings, retained when switched off |
| Keyboard | 8 soft-touch membrane keys |
| Printer interface | Dot matrix printer with Centronics interface |
| Power | 230 V ±10% AC, 50 Hz |
| Accessories listed | Conductivity/TDS cell, temperature probe, dust cover, instruction manual |
Applications of the microprocessor TDS meter
Automatic ranging and stored readings let one operator test long runs of water or soil samples for conductivity and dissolved solids and print the results for records.
- Agriculture and soil analysis laboratories
- Boiler feed water and water works quality control
- Water purification and mineral water plants
- Swimming pool water testing
- Fertiliser plants, refineries and breweries
Scope of supply and ordering
The listing covers the microprocessor conductivity/TDS meter with conductivity/TDS cell, temperature probe, dust cover and instruction manual. A printer is not part of the listing. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of meters and the delivery destination. JaincoLab supplies single meters and sets for testing laboratories, colleges and tender orders.
Frequently asked questions
What ranges does the meter cover?
Conductivity from 0-20 µS to 0-200 mS and TDS from 0-20 ppm to 0-200 ppt, selected automatically.
What comes with the meter?
A conductivity/TDS cell, temperature probe, dust cover and instruction manual.
Can results be printed?
Yes. Stored readings can be printed on a dot matrix printer with Centronics interface.
