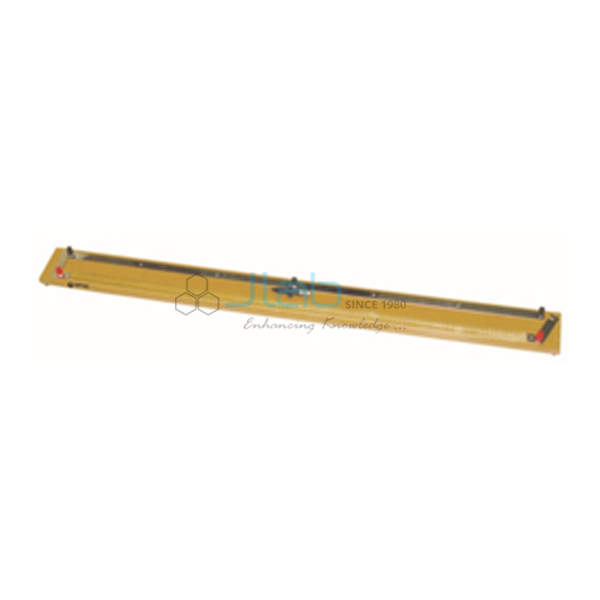

Wheatstone Bridge
Product Code : JA-EE-7586
The Wheatstone Bridge (SKU JA-EE-7586) is a slide-wire bridge for finding an unknown resistance by balancing it against a known one, a standard practical in senior-school and college physics. A 24 SWG constantan wire is stretched along the top of a metre scale marked in mm and cm, broad heavily plated brass strips are mounted on a polished hardwood base, and the terminals have 4 mm sockets. The bridge measures 1130 × 80 × 50 mm, and JaincoLab supplies it with a jockey.
Specifications
This slide-wire Wheatstone bridge has a 24 SWG constantan wire stretched along a metre scale graduated in mm and cm, broad heavily plated brass strips on a polished hardwood base, terminals with 4 mm sockets and a supplied jockey, in an overall size of 1130 × 80 × 50 mm.
| Product | Wheatstone Bridge |
| SKU | JA-EE-7586 |
| Bridge wire | 24 SWG constantan wire |
| Scale | Metre scale in mm and cm, with the wire stretched along its top |
| Connecting strips | Broad, heavily plated brass strips |
| Base | Polished hardwood |
| Terminals | 4 mm sockets |
| Supplied with | Jockey |
| Dimensions | 1130 × 80 × 50 mm |
Experiments with the slide-wire Wheatstone bridge
In the laboratory the Wheatstone bridge is used to find an unknown resistance: students slide the jockey along the constantan wire until the galvanometer shows no deflection, read the two balancing lengths from the metre scale and apply their ratio to a known resistance; the same set-up gives resistivity and resistance-temperature results.
- Determining an unknown resistance by the balance-point method
- Finding the resistivity of the material of a given wire
- Verifying the laws of combination of resistances in series and parallel
- Measuring the resistance of a coil or platinum resistance thermometer at different temperatures
- Senior-secondary (Class 12) and B.Sc current electricity practicals
Scope of supply and ordering
The listing covers the Wheatstone bridge as described, supplied with a jockey. The galvanometer, resistance box, cell, key and connecting leads needed to complete the circuit are separate items. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation according to the quantity and the delivery destination. JaincoLab supplies bridges singly or in batches for college and school practical rooms, including bulk and export orders to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What wire is used on this Wheatstone bridge?
A 24 SWG constantan wire, stretched along the top of a metre scale marked in mm and cm.
Is a jockey included?
Yes. The bridge is supplied with a jockey.
What are the dimensions of the bridge?
It measures 1130 × 80 × 50 mm and is built on a polished hardwood base.
Which other items are needed to run the experiment?
A galvanometer, a resistance box, a cell, a key and connecting leads, which can be quoted together with the bridge.
