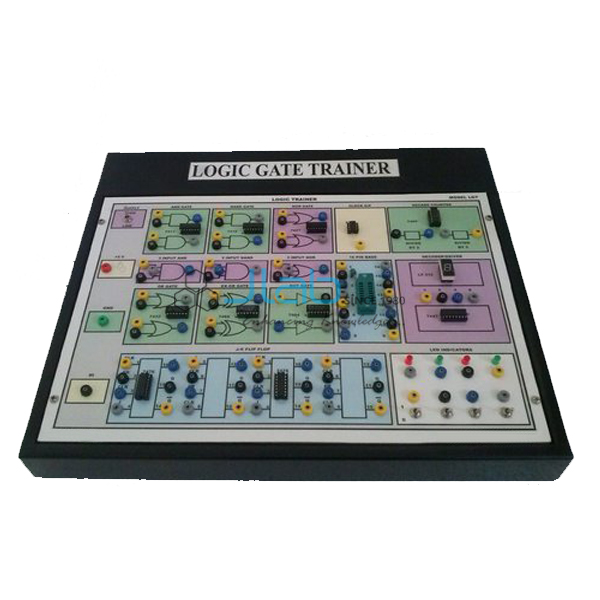

Logic Gate Trainer
Product Code : JA-ELA-5240
The Logic Gate Trainer (SKU JA-ELA-5240) is a digital electronics trainer for studying AND, OR, NOR and EX-OR gates and flip-flops and verifying the truth table of each. It also introduces the decoder and the operation of a multivibrator, a decade counter and a digital display. Four logic switches feed the inputs, the outputs show on an LED logic monitor, and an IC tester is provided. JaincoLab makes it for school electronics, polytechnic and B.Sc practicals.
Specifications
The logic gate trainer provides four logic switches for the inputs to every gate and section, an LED logic monitor for the outputs and an IC tester, with circuits for gates, flip-flops, decoder, multivibrator, decade counter and digital display.
| Product | Logic Gate Trainer |
| SKU | JA-ELA-5240 |
| Gates | AND, OR, NOR, EX-OR |
| Sequential circuits | Flip-flops |
| Other sections | Decoder, multivibrator, decade counter, digital display |
| Inputs | 4 logic switches |
| Output indication | LED logic monitor |
| Included | IC tester |
Experiments on the logic gate trainer
The logic gate trainer is used to verify the truth tables of the AND, OR, NOR and EX-OR gates and of a flip-flop, and then to study a decoder, a multivibrator, a decade counter and a digital display on the same bench unit.
- Truth table verification of AND, OR, NOR and EX-OR gates
- Flip-flop truth table experiments
- Decoder concept, multivibrator operation and decade counter with digital display
- Digital electronics practicals in schools, polytechnics and B.Sc courses
Scope of supply and ordering
The listing covers one Logic Gate Trainer with 4 logic switches, LED logic monitor and IC tester. Connecting leads, the power arrangement and the manual are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of trainers and the delivery destination. Electronics labs can order single trainers or batch quantities.
Frequently asked questions
Which gates can be studied?
AND, OR, NOR and EX-OR gates, plus flip-flops, with truth-table verification for each.
How are the inputs and outputs handled?
Four logic switches provide the inputs and the outputs are observed on an LED logic monitor.
What is the IC tester for?
It lets the class conduct an experiment when an extra gate is required.
Related products
This trainer is listed in the JaincoLab educational laboratory apparatus range.
Request a quote
To order the Logic Gate Trainer, send the number of trainers and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-ELA-5240.
