LDR Circuit Board
Product Code : JA-EE-7541

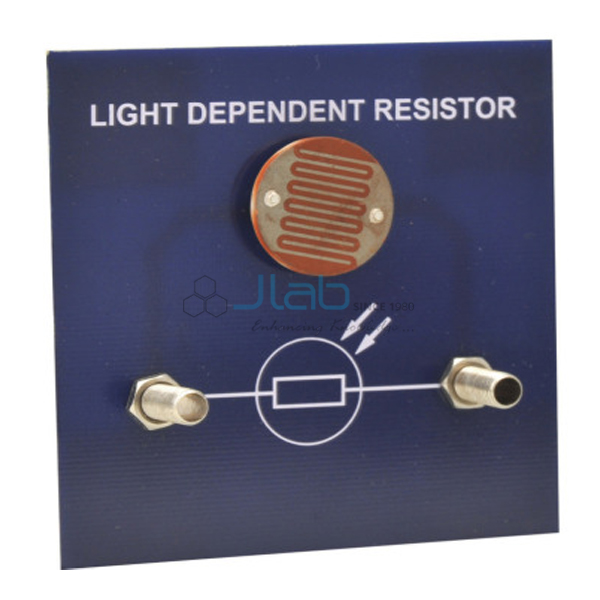

The LDR Circuit Board (SKU JA-EE-7541) is a simple circuit board carrying a light dependent resistor for light-sensing experiments in school electricity and electronics lessons. On this LDR circuit board the sensor has a resistance of approximately 250 ohms in normal room conditions, rising as the light is reduced, so students can see resistance change with light level and use it in simple sensing circuits. JaincoLab supplies it with matching LED boards.
Specifications
The LDR Circuit Board mounts a light dependent resistor on a simple board; its resistance is about 250 ohms in normal room conditions and increases as the light falling on it is reduced, and the dark resistance, board format and connections are confirmed on the quotation.
| Product | LDR Circuit Board |
| SKU | JA-EE-7541 |
| Type | Simple circuit board with light dependent resistor (LDR) |
| Resistance in normal room light | Approximately 250 ohm |
Applications of the LDR circuit board
The board is used to show how an LDR responds to light, first by measuring its resistance in room light and when shaded, and then by building light-sensing circuits that switch or dim an LED or lamp as the light level changes.
- Measuring LDR resistance in room light and when shaded
- Light-dependent brightness of an LED or lamp in series
- Light or dark alarm circuits with the LED boards
- Potential divider sensing circuits in electronics lessons
Scope of supply and ordering
The listing covers one LDR circuit board. Meters, cells, leads and LED boards are separate items. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for the quantity and destination. JaincoLab supplies circuit boards singly or in class sets for schools, colleges and education projects.
Frequently asked questions
What is the resistance of the LDR in room light?
Approximately 250 ohm in normal room conditions.
What happens when the LDR is covered?
Its resistance increases as the light falling on it is reduced; the dark resistance figure is confirmed on the quotation.
Which boards work with it?
The LED Red and LED Green Circuit Boards, listed separately, are used with it in light-sensing circuits.
Related products
LDR, LED and motor circuit boards are in electricity equipment from JaincoLab, a physics lab equipment manufacturer in India.
Request a quote
To order the LDR Circuit Board, send the quantity and delivery destination through the JaincoLab contact page or email [email protected]. Tender and project enquiries can be sent through the tenders page.
