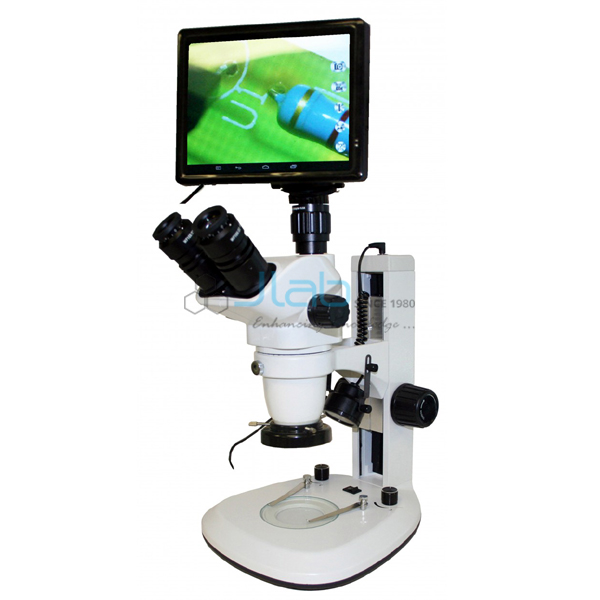

LCD Touch Pad Digital Wide Field Stereo Zoom Trinocular Microscope
Product Code : JA-M-8129
The LCD Touch Pad Digital Wide Field Stereo Zoom Trinocular Microscope (SKU JA-M-8129) adds an 8 in multi-touch LCD with an integrated 2 MP camera to a trinocular stereo zoom microscope, so specimens can be viewed, focused and captured on the screen as well as through the eyepieces. The zoom gives 6.7x to 45x, and images save to internal memory, mini SD card or USB. Supplied by JaincoLab, this digital stereo zoom microscope suits classrooms and inspection benches.
Specifications
The listing gives an 8 in 1024 x 768 touch screen with up to 5-point control, an integrated 2 MP camera, a trinocular head with 50/50 split, 54 to 76 mm interpupillary distance, WF10x/22 mm eyepieces with +/-5 dioptre, a 0.67x to 4.5x zoom and a 105 mm working distance.
| Product | LCD Touch Pad Digital Wide Field Stereo Zoom Trinocular Microscope |
| SKU | JA-M-8129 |
| Screen | 8 in LCD, 1024 x 768, multi-touch up to 5 points |
| Camera | Integrated 2 MP; automatic white balance and exposure |
| Image storage | System memory, mini SD card or USB device |
| Magnification | 6.7x-45x; 3.4x-180x with auxiliary objectives and optional eyepieces |
| Head | Trinocular, 50/50 split, 45 degrees, rotates 360 degrees; IPD 54-76 mm |
| Eyepieces | WF10x/22 mm pair, high eyepoint, +/-5 dioptre on both, lockable |
| Zoom body | 0.67x-4.5x, ratio 1:6.7, parfocal |
| Working distance | 105 mm standard; 26-177 mm with auxiliary objectives |
| Focusing | Rack and pinion, two knobs with tension adjustment, 100 mm range |
Applications of the digital stereo zoom microscope with LCD
The built-in screen lets a teacher show a specimen to a small group, and lets technicians inspect parts without looking through the eyepieces; captured images go straight to an SD card or USB drive for reports and practical files.
- Group viewing of specimens on the screen
- Image capture for practical files and reports
- Electronics and circuit board inspection
- Insects, seeds and dissections
- Quality inspection of small parts
Scope of supply and ordering
One unit is one stereo zoom trinocular microscope with the integrated 8 in LCD and 2 MP camera, WF10x/22 mm eyepieces and zoom body as listed. Stand and lighting details, auxiliary objectives, optional eyepieces, protective glass and quantities are confirmed on the quotation.
The quotation confirms the minimum order quantity, lead time and packing for the quantity and delivery destination you give. Orders from individual schools, bulk purchases for colleges and education programmes, and tender requirements are all supplied, with export to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Can images be saved?
Yes, to the system memory, a mini SD card or a USB storage device.
What is the screen size and resolution?
An 8 in LCD with 1024 x 768 resolution and multi-touch control of up to 5 points.
What magnification does it give?
6.7x to 45x as standard, and 3.4x to 180x with auxiliary objectives and optional eyepieces.
