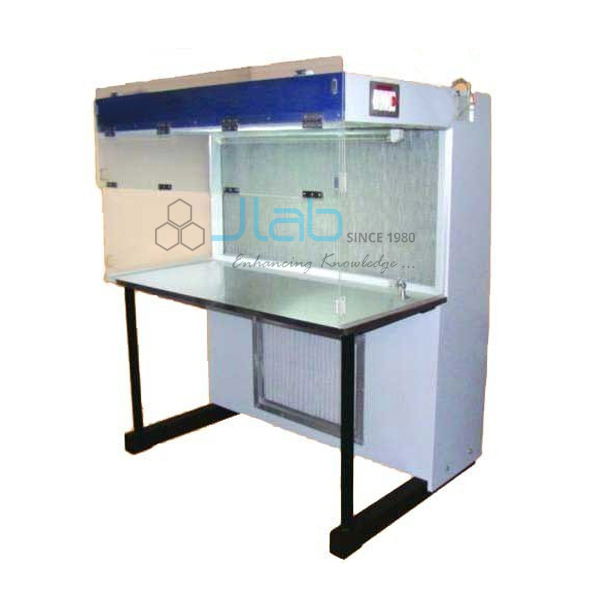

Laminar Air Flow Horizontal
Product Code : JA-CAE-1965
The Laminar Air Flow Horizontal (SKU JA-CAE-1965) pushes air through a HEPA filter and sends it horizontally across the work surface towards the operator, keeping airborne particles off the product. JaincoLab makes this horizontal laminar air flow cabinet in five sizes for plant tissue culture, media plate preparation, microbiology teaching, electronics inspection and pharmacy preparation work.
Specifications
The cabinet is built of SS 304 or PCRC sheet with a washable pre-filter ahead of the HEPA filter, gives unidirectional air flow at a noise level of 54 dB(A) and fluorescent lighting above 800 lux, and draws 500 to 750 W on 220-230 V, 50 Hz.
| Product | Laminar Air Flow Horizontal |
| SKU | JA-CAE-1965 |
| Air flow | Unidirectional, horizontal, HEPA filtered |
| Cabinet construction | SS 304 or PCRC sheet |
| Pre-filter | Washable pre-filter unit |
| Noise level | 54 dB(A) |
| Illumination | Fluorescent, above 800 lux |
| Power | 500 to 750 W; 220-230 V, 50 Hz |
| Sizes | 600 x 600 x 600, 900 x 600 x 600, 1200 x 600 x 600, 1500 x 600 x 600 and 1800 x 600 x 600 mm |
Applications of the horizontal laminar air flow cabinet
Horizontal flow gives a tall, deep working area that can take instruments such as microscopes, so it is chosen for product-protection work; because the air blows towards the operator, it is not used with biohazardous material, toxins or radionuclides.
- Plant tissue culture and media plate preparation
- Aseptic handling in microbiology teaching laboratories
- Pharmacy preparation of non-hazardous products
- Electronics inspection and small-part assembly
Scope of supply and ordering
The listing covers the horizontal laminar air flow cabinet in the size ordered, with pre-filter, HEPA filter, blower and lighting. UV lamp, stands and other options are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the size, cabinet material, number of units and the delivery destination. JaincoLab supplies single cabinets and multiple units for colleges, research laboratories and institutional orders.
Frequently asked questions
Does it protect the operator?
No. A horizontal laminar flow cabinet protects the product; it should not be used with biohazardous material, toxins or radionuclides.
Which sizes are listed?
600, 900, 1200, 1500 and 1800 mm wide, each 600 x 600 mm in depth and height.
What is the cabinet made of?
SS 304 or PCRC sheet.
Related products
Vertical laminar flows, biosafety cabinets and pass boxes are listed in the JaincoLab clean air equipment range.
Request a quote
To order the Laminar Air Flow Horizontal, send the size, cabinet material, quantity and delivery destination through the JaincoLab contact page or email [email protected]. Tender and project enquiries can be sent through the tenders page.
