Reverse Laminar Flow
Product Code : JA-CAE-6561

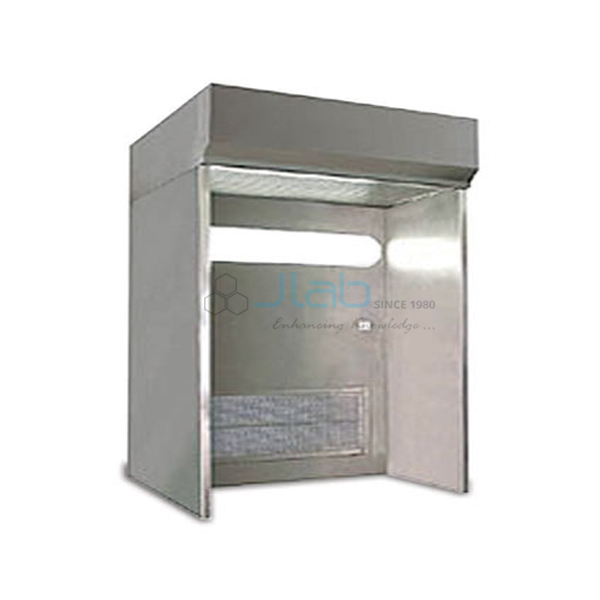

The Reverse Laminar Flow (SKU JA-CAE-6561) is an open-front laminar flow workstation for sampling and dispensing products, with built-in scavenging that draws powder aerosols away from the operator and the surrounding area. JaincoLab builds this reverse laminar flow station for pharmaceutical stores, dispensing rooms and quality-control laboratories where powders are opened and weighed.
Specifications
The workstation retains particles down to 0.3 micron, moves air at 100 FPM ±20%, is lit by a 4 ft, 40 W lamp with diffuser, runs at a noise level of 60 to 65 dB and works on 220 V single phase.
| Product | Reverse Laminar Flow |
| SKU | JA-CAE-6561 |
| Design | Open-front containment with built-in scavenging |
| Particle retention | 0.3 micron |
| Air velocity | 100 FPM ±20% |
| Illumination | 4 ft, 40 W, with diffuser |
| Noise level | 60 to 65 dB |
| Power supply | 220 V single phase |
Applications of the reverse laminar flow workstation
Reverse laminar flow is used where powders are handled in the open, because the air is drawn away from the person and filtered, which protects both the operator and the product being sampled or dispensed.
- Sampling of raw materials in pharmaceutical warehouses
- Weighing and dispensing of active and excipient powders
- Handling fine chemicals in quality-control laboratories
- Containment demonstrations in pharmacy colleges
Scope of supply and ordering
The listing covers the reverse laminar flow workstation with its filters, blower and lighting. Size, construction material and gauges are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the size, number of units and the delivery destination. JaincoLab supplies single workstations and multiple units for pharmaceutical plants and institutional orders.
Frequently asked questions
What does reverse laminar flow do?
It draws powder aerosols away from the operator and the surroundings through built-in scavenging during sampling and dispensing.
What air velocity does it use?
100 FPM ±20%.
What particle size is retained?
Particles down to 0.3 micron.
Related products
Dispensing booths, laminar flows and pass boxes are listed in the JaincoLab clean air equipment range.
Request a quote
To order the Reverse Laminar Flow, send the size, quantity and delivery destination through the JaincoLab contact page or email [email protected]. Tender and project enquiries can be sent through the tenders page.
