Kundt's Tube Apparatus
Product Code : JA-SW-9419

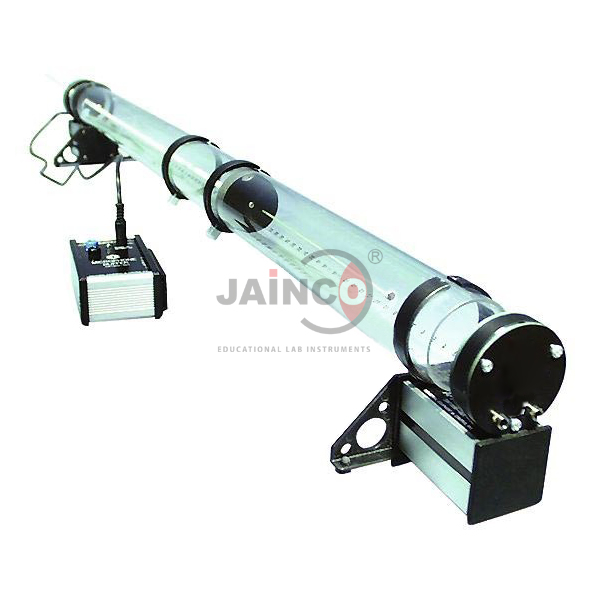

The Kundt's Tube Apparatus (SKU JA-SW-9419) is a resonance tube set for studying sound and waves, standing waves, resonance, musical instruments and tones, and it needs only a signal generator to run. This Kundt's tube apparatus with microphone and speaker has an 850 mm transparent resonance tube with a metric scale, two side holes with sliding shutters and an adjustable piston; a mini speaker at one end produces the sound and a miniature microphone passed along the tube locates the maximum and minimum sound levels, best displayed on an oscilloscope.
Specifications
The set comprises an 850 mm transparent resonance tube with metric scale, two side holes with sliding shutters, an adjustable piston, a miniature microphone that passes along the tube, a mini speaker for one end, a driver to interface the speaker to an amplifier or oscilloscope, and an instruction booklet.
| Product | Kundt's Tube Apparatus |
| SKU | JA-SW-9419 |
| Resonance tube | Transparent, 850 mm long, with metric scale |
| Side holes | Two, with sliding shutters |
| Piston | Adjustable |
| Sound source | Mini speaker fitting one end of the tube |
| Detector | Miniature microphone that can be passed up the tube |
| Driver | Interfaces the speaker to an amplifier or oscilloscope |
| Documentation | Instruction booklet |
| Required to run | Signal generator; an oscilloscope is recommended for reading maximum and minimum levels |
Experiments with the Kundt's tube apparatus
With a known frequency from the signal generator, students locate the nodes and antinodes of the standing wave with the microphone, measure their spacing on the scale and calculate the wavelength and the speed of sound in air.
- Standing waves and resonance in an air column
- Locating nodes and antinodes with the travelling microphone
- Determining the speed of sound in air
- Effect of open side holes and piston position, as in wind instruments
Scope of supply and ordering
The listing covers the tube, shutters, piston, microphone, mini speaker, driver and instruction booklet. The signal generator, oscilloscope, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation according to the quantity and delivery destination. JaincoLab supplies sound and waves apparatus to schools, colleges and education projects, and exports to buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What else is needed to run the apparatus?
Only a signal generator is required; an oscilloscope is ideal for finding the maximum and minimum sound levels.
How long is the resonance tube?
It is a transparent tube 850 mm long with a metric scale.
How are nodes located?
A miniature microphone is passed up the tube to find where the sound level is at a maximum and a minimum.
