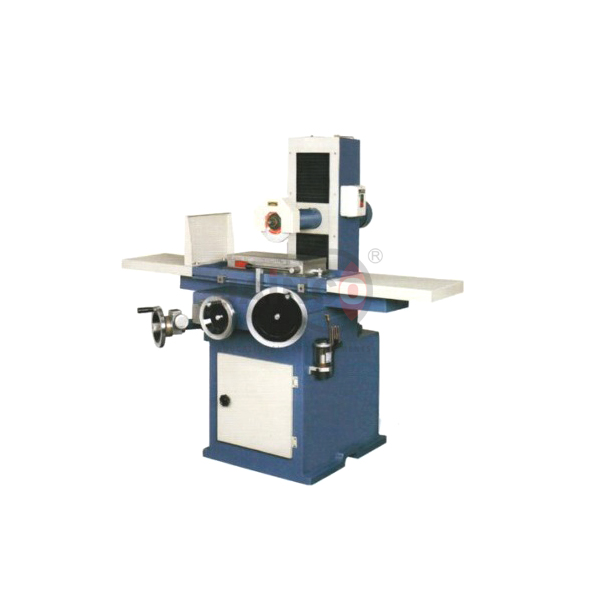

High Precision Surface Grinder
Product Code : JA-WEAWLM-8730
The surface grinder is a precision grinding machine for producing flat surfaces on metal parts in machine shop training. It has a 225 x 450 mm table, 275 mm maximum height from table to wheel, a 200 x 13 x 31.75 mm grinding wheel at 2800 rpm, 0.01 mm vertical feed graduation and 0.05 mm crossfeed graduation, with a 0.75 kW (1 hp) motor recommended (SKU JA-WEAWLM-8730).
Specifications
Listed specification:
| Product | High Precision Surface Grinder |
| SKU | JA-WEAWLM-8730 |
| Table working surface | 225 x 450 mm |
| Maximum height, table to wheel | 275 mm |
| Grinding wheel (dia x width x bore) | 200 x 13 x 31.75 mm |
| Spindle speed | 2800 rpm |
| Vertical feed graduation | 0.01 mm |
| Crossfeed graduation | 0.05 mm |
| Motor recommended | 0.75 kW / 1 hp |
| Machine weight | 800 kg approx. |
Scope of supply and ordering
The listing covers one surface grinder, supplied by JaincoLab. Packing, lead time and the quantity per order are agreed on the quotation.
Frequently asked questions
What size of work can it take?
The table working surface is 225 x 450 mm, with up to 275 mm between the table and the grinding wheel.
What grinding wheel does it use?
A 200 x 13 x 31.75 mm wheel running at 2800 rpm.
