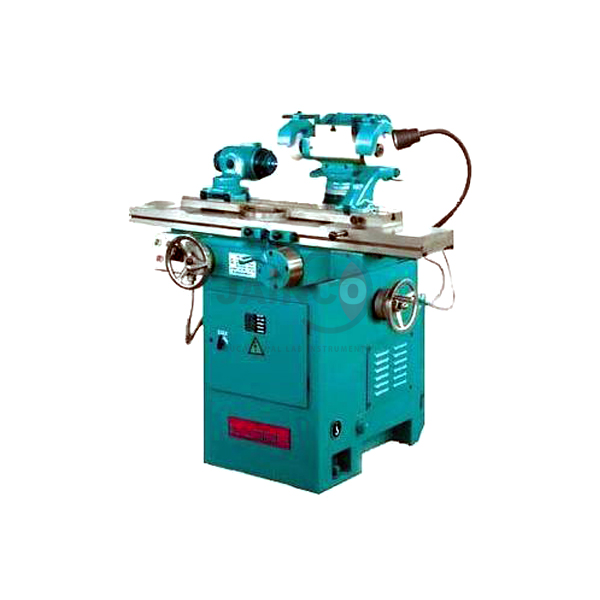

Universal Tool and Cutter Grinder
Product Code : JA-WEAWLM-8734
The universal tool and cutter grinder sharpens milling cutters, reamers and other cutting tools in machine shop training. It takes grinding wheels up to 175 mm, has a 225 mm swing over the table and 500 mm between centres, a wheel head that tilts ±15° vertically, and table traverses of 500 mm longitudinal and 215 mm cross (SKU JA-WEAWLM-8734).
Specifications
Listed specification:
| Product | Universal Tool and Cutter Grinder |
| SKU | JA-WEAWLM-8734 |
| Maximum grinding wheel diameter | 175 mm |
| Swing over table | 225 mm |
| Distance between centres | 500 mm |
| Wheel head vertical tilt | ±15° |
| Maximum job weight | 15 kg in chuck; 25 kg between centres |
| Largest job size | 500 x 350 mm |
| Table traverse | 500 mm longitudinal; 215 mm cross |
Scope of supply and ordering
The listing covers one universal tool and cutter grinder, supplied by JaincoLab. The number of units, the packing and the dispatch time are confirmed on the quotation.
Frequently asked questions
What job weight can it hold?
Up to 15 kg in the chuck and 25 kg between centres.
How far does the table travel?
500 mm longitudinally and 215 mm across.
