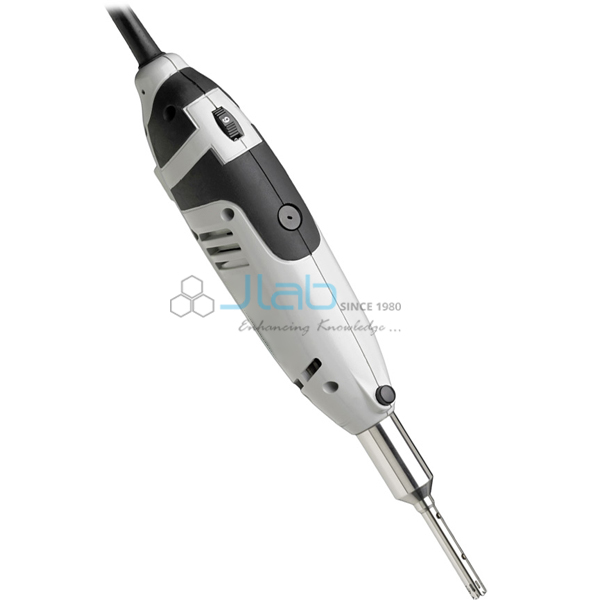

Hand Held Homogenizer
Product Code : JA-LE-8242
The Hand Held Homogenizer (SKU JA-LE-8242) is a rotor stator homogenizer that homogenizes, emulsifies, suspends and disrupts biological samples. The spinning rotor draws liquid into the generator probe and forces it out through the stator slots; repeated passes add shearing, so most samples are done in 30 seconds or less. A 130 W motor gives 8,500 to 30,000 rpm in six steps. It is supplied by JaincoLab.
Specifications
Listed values and probe options:
| Product | Hand Held Homogenizer |
| SKU | JA-LE-8242 |
| Speed range | 8,500 to 30,000 rpm, six steps |
| Motor | 130 W |
| Sample volume | 0.1 to 250 ml, depending on the probe |
| Probes supplied | 5 mm and 7 mm diameter, 50 mm long (for microtubes) |
| Other probes | 10 x 115 mm (15 and 50 ml tubes); 14 x 130 mm (50 ml tubes and vessels to 250 ml) |
| Probe material | Stainless steel, autoclavable |
| Noise level | Below 70 dB |
| Ambient operating range | +4 to 65°C |
| Size | 4.5 x 5.8 x 22.5 cm |
| Weight | 0.62 kg |
| Electrical | 115 V 60 Hz or 230 V 50 Hz |
Scope of supply and ordering
The homogenizer is supplied with one 5 mm and one 7 mm generator probe; the 10 mm and 14 mm probes are extra, so list the probes and supply voltage you need, and the quotation confirms packing and lead time.
Frequently asked questions
Which probe should I use for my tube size?
The 5 and 7 mm probes suit microtubes, the 10 x 115 mm probe suits 15 and 50 ml tubes, and the 14 x 130 mm probe handles 50 ml tubes and vessels up to 250 ml.
Can the probes be sterilised?
Yes, all generator probes are stainless steel and can be autoclaved.
Can the speed be left set between samples?
Yes, a separate on/off switch lets the unit be switched off without changing the speed setting.
