GPS Receiver
Product Code : JA-SE-8838

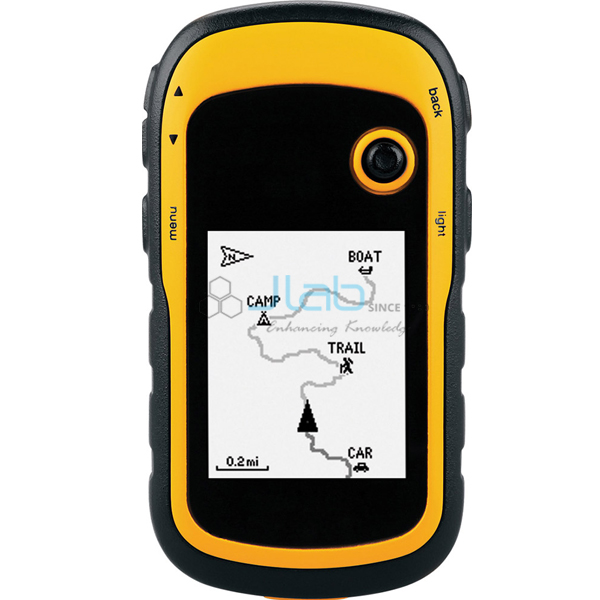

The GPS receiver (SKU JA-SE-8838) is a portable handheld satellite receiver designed for personal use in navigation and field recording. It stores up to 500 waypoints, 20 routes and a track log of 10,000 points, and runs about 17 hours on two AA batteries. It is supplied by JaincoLab for geography, surveying, forestry and environmental field work in colleges and training institutes.
Specifications
The GPS receiver has a 4-level LCD display of 2.8 x 5.4 cm (64 x 128 pixels), a high-sensitivity receiver, serial interface, a weight of 150 g and a battery life of about 17 hours on 2 AA batteries, which are not included.
| Product | GPS Receiver |
| SKU | JA-SE-8838 |
| Type | Portable handheld GPS receiver |
| Display | 1.1 x 2.1 inch (2.8 x 5.4 cm), 4-level LCD, 64 x 128 pixels |
| Unit dimensions | 4.4 x 2.0 x 1.2 inch (as listed) |
| Receiver | High-sensitivity |
| Memory | 500 waypoints/favourites/locations; 20 routes; track log 10,000 points, 10 saved tracks |
| Interface | Serial |
| Weight | 150 g (5.3 oz) |
| Battery | 2 x AA (not included); battery life 17 hours |
Applications of the handheld GPS receiver
The handheld GPS receiver is used to record positions and waypoints, log tracks and navigate back to marked points, which suits field trips, reconnaissance surveys and locating sampling sites.
- Recording waypoints and positions in the field
- Track logging and route navigation
- Locating sampling points in environmental and forestry studies
- Reconnaissance for surveys and mapping
- Geography and GIS practicals
Scope of supply and ordering
The listing covers the handheld GPS receiver. Batteries are not included, and cables, case and software are not described in the product data; these are confirmed on the quotation with quantities.
MOQ, lead time and packing for the GPS receiver are confirmed on each quotation for the quantity and delivery destination. Single units and class sets for field programmes are supplied, with export to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
How many waypoints can it store?
Up to 500 waypoints, favourites or locations, 20 routes and a track log of 10,000 points with 10 saved tracks.
What batteries does it use?
Two AA batteries, which are not included; battery life is about 17 hours.
How heavy is the receiver?
It weighs about 150 g (5.3 oz).
Related products
Other survey instruments are listed in the JaincoLab survey equipment range.
Request a quote
To order the GPS receiver, send the quantity and delivery destination through the JaincoLab contact page or email [email protected]. Buying under a laboratory tender? Use our tenders page.
