Geoboard
Product Code : JL-LEP-10292

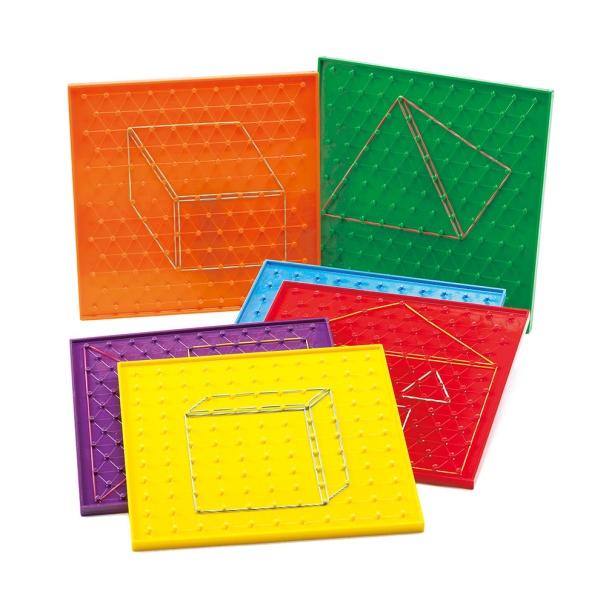

The Geoboard (SKU JL-LEP-10292) is a double sided geoboard for exploring polygons, circles, area, perimeter and circumference. One side has an 11 x 11 square pattern of pins and the other a circle pattern, so pupils can stretch rubber bands into shapes on a grid or round a circle. The board is sturdy plastic at least 230 x 230 mm, with a 6 mm raised edge and 3 mm pins at least 5 mm high; it sits flat without warping. JaincoLab manufactures it in India, made as per DepEd guidelines.
Specifications
The geoboard is specified by pattern, material and size: double sided with an 11 x 11 square pattern and a circle pattern, sturdy plastic, at least 230 x 230 mm, 6 mm edging, 3 mm thick board and pins of 3 mm diameter and 5 mm height (minimum).
| Product | Geoboard |
| SKU | JL-LEP-10292 |
| Type | Double-sided: square pattern (11 x 11) on one side, circle pattern on the other |
| Material | Sturdy plastic (any colour) |
| Surface and edges | Smooth, no warping; sits flat on the table |
| Board dimensions (W x L) | 230 x 230 mm (min) |
| Edging height | 6 mm from the board (min), all sides |
| Board and edging thickness | 3 mm (min) |
| Pin diameter | 3 mm (min) |
| Pin height | 5 mm (min) |
| Specification reference | As per DepEd guidelines |
Applications of the double sided geoboard
The geoboard is used in geometry lessons where pupils build and change shapes quickly. Typical uses are:
- Making polygons and naming their properties
- Finding area and perimeter by counting grid units
- Exploring chords, radii and circumference on the circle side
- Investigating symmetry and transformations
Scope of supply
Each unit is one double-sided geoboard, as described in the specification table. Rubber bands are confirmed on the quotation, as are accessories, spares and quantities.
Packing, MOQ and lead time
MOQ, packing and lead time for geoboards are confirmed on each quotation for the quantity and destination. JaincoLab supplies class sets for schools, bulk orders for education projects, and export consignments to Africa, the Middle East and South and South-East Asia.
JaincoLab supports tender contractors as well as institutions: we manufacture and export laboratory equipment for Ministry of Education projects, World Bank-funded tenders and United Nations programmes, executed successfully in many countries, and we specialise in turnkey laboratory set-ups. Contact us through the tenders page early in your bid preparation.
Frequently asked questions
What patterns does the Geoboard have?
An 11 x 11 square pin pattern on one side and a circle pattern on the other.
How large is it?
At least 230 x 230 mm.
Does it lie flat?
Yes. It is smooth, does not warp and sits flat on the table.
What should a quotation request include?
Send the SKU JL-LEP-10292, the quantity and the delivery destination.
Related products
Related geometry aids:
See all Laboratory Equipment Products, or the range from JaincoLab as a maths lab equipment manufacturer in India.
Request a quote
To order the Geoboard, send the quantity and delivery destination through the JaincoLab contact page or email [email protected].
