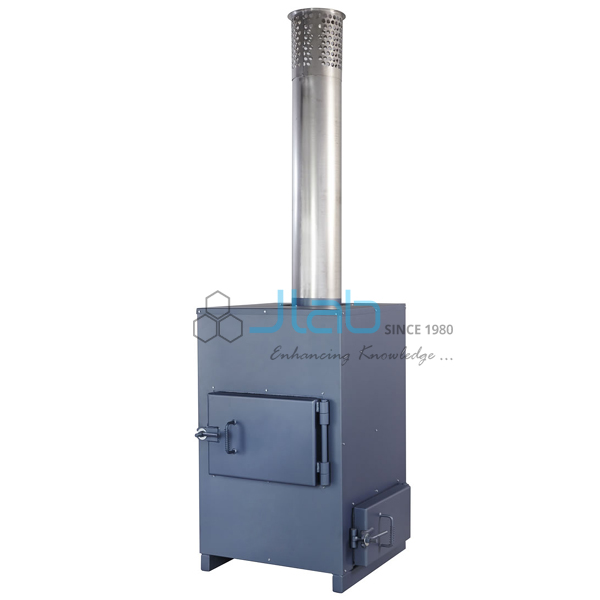

General Waste Incinerator
Product Code : JA-I-2430
The General Waste Incinerator (SKU JA-I-2430) burns mixed solid waste such as paper, garbage, rubber, leather and non-edible food on the controlled-air (pyrolytic) principle. It is heated by a 20 kW electric heater with automatic controls, handles 15 to 20 kg per batch and cleans its flue gas with a scrubber served by a re-circulation pump. This general waste incinerator suits hotels, markets, campuses and institutions with a daily waste load.
Specifications
The general waste incinerator is specified by a batch capacity of 15 to 20 kg, a 20 kW electric heater, a centrifugal induced draft fan of 2000 Nm3/hr and the tanks and chimney listed below. Installation layout and civil work are confirmed on the quotation.
| Product | General Waste Incinerator |
| SKU | JA-I-2430 |
| Combustion principle | Controlled air (pyrolytic) |
| Capacity | 15 to 20 kg per batch |
| Fuel | Electrical heater of 20 kW with automatic controls |
| Induced draft fan | Centrifugal, 2000 Nm3/hr, head 300 mm |
| Motor | 2 HP |
| Scrubber | Scrubbing liquid re-circulation pump; FRP/epoxy-lined tank with inlet, outlet, drain, overflow and fresh water connections |
| Piping | Stainless steel piping with valve, NRV and strainer |
| HDPE tank | 100 litres with stop cock, for chemical storage |
| Emergency water tank | 500 litres |
| Collection tank | 1000 litres |
| Plate thickness | 4 mm |
| Chimney | MS, 6 mm; 150 mm at top, 600 mm at bottom; height 30 m; base plate 16 mm |
Waste types handled by the general waste incinerator
The unit is meant for mixed solid waste from commercial and residential sources, from dry trash and cartons to wet garbage from kitchens and markets, with the waste described in the listing by moisture, incombustible content and heating value.
- Type A trash: paper, cartons, wood boxes and floor sweepings
- Type B rubbish: combustible waste with some cafeteria waste
- Type C refuse and Type D garbage from homes, restaurants, hotels and markets
- Rubber, leather, tyre and rice grass waste
Scope of supply and ordering
The listing covers the General Waste Incinerator with electric heater and automatic controls, scrubber with re-circulation pump, induced draft fan, tanks, piping and chimney. Handling, use and disposal must follow the regulations that apply to this material in the destination country. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for the quantity and delivery destination. The chimney and tanks are dispatched as separate items for erection at site; institutional and tender orders are supplied.
Frequently asked questions
How much waste does it take per batch?
15 to 20 kg per batch, heated by a 20 kW electric heater with automatic controls.
How is the flue gas handled?
A scrubber with a re-circulation pump treats the gas, and a centrifugal induced draft fan of 2000 Nm3/hr carries it to a 30 m chimney.
What waste can it burn?
Paper, garbage, refuse, rubber, leather, tyre, rice grass, hotel waste and non-edible food, as listed.
