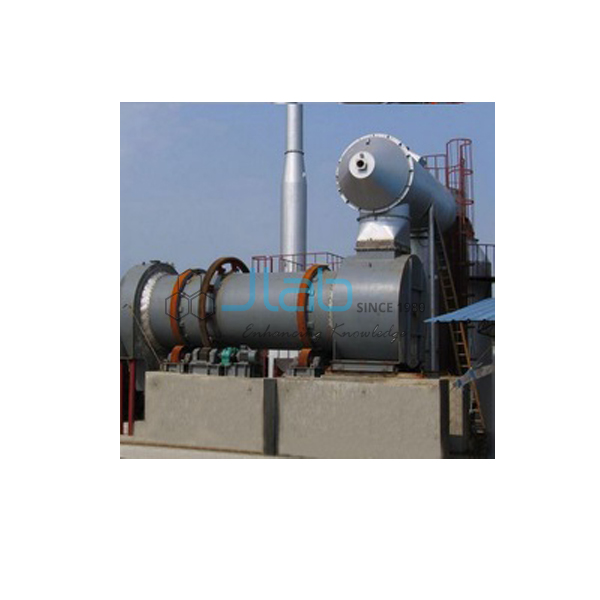

Rotary Kiln Incinerator
Product Code : JA-I-2442
The Rotary Kiln Incinerator (SKU JA-I-2442) treats industrial or domestic waste, turning the combustible part into exhaust gases and the incombustible part into ash. It is lined with high-grade castable cement, its doors are sealed with gaskets and a limit switch, and it has ash removal doors in the primary, secondary and settling chambers. This rotary kiln incinerator is controlled from a floor-mounted weatherproof panel and is built for industrial and municipal users.
Specifications
The rotary kiln incinerator is specified by its three chambers, castable refractory lining, digital temperature controllers for the primary and secondary chambers and the fan and duct values in the table. Kiln size and throughput are confirmed on the quotation.
| Product | Rotary Kiln Incinerator |
| SKU | JA-I-2442 |
| Chambers | Primary, secondary and settling chambers, each with ash removal door |
| Lining | High-grade castable cement / refractory; gasketed doors with limit switch |
| Control panel | Floor-mounted, weatherproof; automatic control switches; digital temperature controllers for primary and secondary chambers |
| Indicators | Temperature indicator for scrubber and stack; ON/OFF switches, fuses, sensors, hooter |
| Centrifugal fan | Capacity 500 (listed as m/Hr); static pressure 100 mm WC; 1 HP |
| Material | Mild steel |
| Duct line | 4 mm thick; 400 mm dia |
| Inside portion | 25 mm thick |
Applications of the rotary kiln incinerator
The incinerator is used for continuous or batch destruction of mixed industrial and domestic waste, where the settling chamber and scrubber help separate ash and treat the gases before the stack.
- Industrial solid waste from factories
- Domestic and municipal waste
- Institutional waste from large campuses
- Engineering training on thermal waste treatment
Scope of supply and ordering
The listing covers the Rotary Kiln Incinerator with primary, secondary and settling chambers, control panel, centrifugal fan and duct line. Handling, use and disposal must follow the regulations that apply to this material in the destination country. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for the size, quantity and delivery destination. The unit is erected at site; industrial, municipal and tender orders are supplied.
Frequently asked questions
What waste can it treat?
Industrial or domestic waste; combustible waste is turned into exhaust gases and incombustible waste into ash.
How is it controlled?
From a floor-mounted weatherproof panel with automatic control switches and digital temperature controllers for the primary and secondary chambers.
What is it made of?
Mild steel, lined with high-grade castable cement, with a 4 mm duct line of 400 mm diameter.
Related products
- Industrial Waste Incinerator
- General Waste Incinerator
- Large Animal Incinerator
- Electronic Bio waste Medical Incinerator
See the complete incinerator range from JaincoLab for industrial, municipal, medical and animal waste.
Request a quote
For a price on the Rotary Kiln Incinerator, send the quantity, the type and daily amount of waste and the delivery destination through the JaincoLab contact page or email [email protected]. Quote the SKU JA-I-2442 so the enquiry is matched to this model. Buying under a laboratory tender? Use our tenders page.
