Force Table
Product Code : JL-LEP-10238

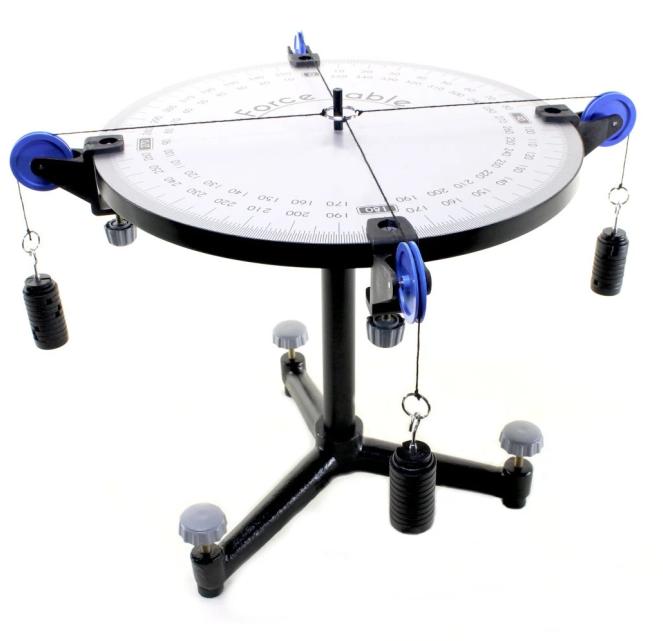

The Force Table (SKU JL-LEP-10238) is used to demonstrate the vector nature of forces. Strings pulled by hanging masses act on a central ring, and students adjust their angles on the 360 degree scale until the ring is balanced, showing at least three coplanar forces in equilibrium. The force table itself is cast iron, about 40 cm across, on a stable stand at least 30 cm high with a levelling screw. It supports vector addition practicals in physics. JaincoLab supplies it as per DepEd guidelines.
Specifications
The force table is specified by its table, stand, scale and capability: cast iron, about 40 cm in diameter, on a stand at least 30 cm high with a levelling screw, a 360 degree scale of 0.5-1 degree resolution, and equilibrium of at least three coplanar forces.
| Product | Force Table |
| SKU | JL-LEP-10238 |
| Table material | Cast iron |
| Table diameter | 40 cm approx. |
| Stand | Stable stand, 30 cm height minimum |
| Levelling | Fitted with levelling screw |
| Protractor scale | 360 degrees, 0.5 - 1 degree resolution |
| Scale text size | 20 mm approx. |
| Demonstration capability | At least 3 coplanar forces in equilibrium |
| Specification reference | As per DepEd guidelines |
Applications of the force table
The table is used in mechanics practicals where students find resultants and equilibrants by experiment and compare them with vector diagrams. Typical uses are:
- Balancing three or more coplanar forces on the central ring
- Finding the resultant of two forces experimentally
- Checking results against parallelogram and triangle constructions
- Reading force directions on the 360 degree scale
Scope of supply and ordering
Each unit is one force table with stand, as described in the specification table. Pulleys, strings and masses are confirmed separately; accessories, spares and quantities are confirmed on the quotation.
MOQ, packing and lead time for the force table are confirmed on the quotation for the quantity and destination. JaincoLab supplies school and college physics laboratories, bulk education project orders and export consignments to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What does the Force Table demonstrate?
It demonstrates the vector nature of forces and equilibrium of coplanar forces.
How many forces can be balanced?
At least three coplanar forces in equilibrium.
What is the table made of?
Cast iron, about 40 cm in diameter, on a stand with a levelling screw.
Related products
Items used in force practicals:
Browse Laboratory Equipment Products or the catalogue from JaincoLab, a physics lab equipment manufacturer in India.
Request a quote
To order the Force Table, send the quantity and delivery destination through the JaincoLab contact page or email [email protected]. Buying under a laboratory tender? Use our tenders page.
