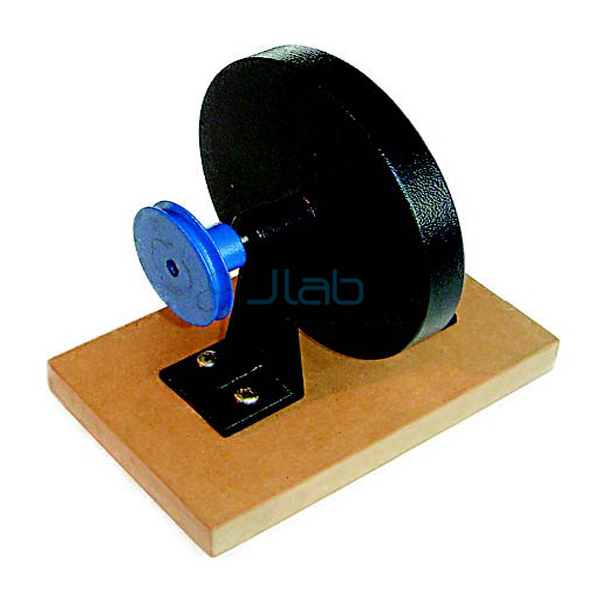

Fly Wheel Unit
Product Code : JA-ETE-7709
The JaincoLab flywheel unit (SKU JA-ETE-7709) stores kinetic energy in a heavy iron flywheel so that students can watch energy change form. Driven through its pulley by the large motor/generator, the flywheel spins up; when the drive is switched over, the stored energy turns the machine as a generator and lights a lamp unit. It is used in school and college lessons on energy transfer and conservation.
Specifications
The unit uses an iron flywheel of 115 mm diameter and 1.2 kg mass, running in bearings in a cast bracket. The shaft carries a 44 mm diameter aluminium pulley for driving. All values are from the product data.
| Product | Fly Wheel Unit |
| SKU / Product code | JA-ETE-7709 |
| Flywheel material | Iron |
| Flywheel diameter | 115 mm |
| Flywheel mass | 1.2 kg |
| Mounting | Cast bracket with bearings |
| Drive pulley | Aluminium, 44 mm diameter, on the shaft |
Applications of the flywheel unit
Coupled to the motor/generator and a lamp, the flywheel shows a complete energy chain on the bench. It is used for:
- Demonstrating the conversion of electrical energy to kinetic energy and back again
- Showing kinetic energy stored in a rotating mass
- Discussing energy losses in a real energy transfer chain
- Energy transfer lessons in secondary-school and college physics
Scope of supply and ordering
This listing covers the flywheel unit, SKU JA-ETE-7709, with bracket, bearings and drive pulley. The large motor/generator and the lamp unit are separate listings that can be added to the same quotation. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for the quantity ordered and the delivery destination. Units are supplied singly or with the motor/generator and lamp unit for school, college and tender orders.
Frequently asked questions
What are the flywheel dimensions?
The iron flywheel is 115 mm in diameter and has a mass of 1.2 kg.
How is the flywheel driven?
Through a 44 mm diameter aluminium pulley on its shaft, normally from the large motor/generator.
What else is needed for the demonstration?
A large motor/generator and a lamp unit, which are separate items in the same energy transfer range.
Related products
Units used with the flywheel:
Browse the energy transfer equipment range or our physics lab equipment manufacturer in India hub.
Request a quote
Request a quotation for the flywheel unit through the JaincoLab contact page. Tender and project enquiries can be sent through the tenders page.
