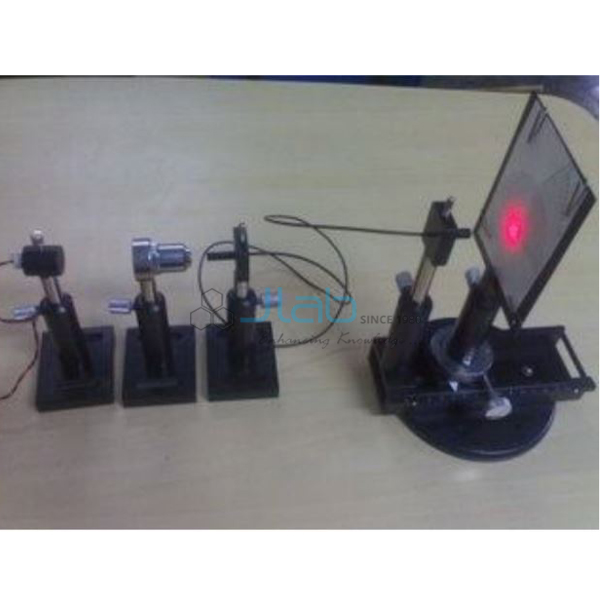

Fiber Optic Apparatus
Product Code : JA-PLE-8023
The Fiber Optic Apparatus (SKU JA-PLE-8023) is a physics laboratory set for studying the numerical aperture of an optical fibre, the basic figure that describes how much light a particular fibre can accept. With this fiber optic apparatus for numerical aperture work, students relate the numerical aperture to the acceptance cone of the fibre, since it is defined as the sine of the half angle of that cone and represents how open the input cone is.
Specifications
The listing defines the apparatus by the quantity it studies, the numerical aperture of an optical fibre; its light source, fibre, detector and mounting details are confirmed on the quotation.
| Product | Fiber Optic Apparatus |
| SKU | JA-PLE-8023 |
| Quantity studied | Numerical aperture (NA) of an optical fibre |
| Definition used | Sine of the half angle of the input acceptance cone |
| Significance | Size or degree of openness of the input acceptance cone |
Applications of the fiber optic apparatus
The apparatus is used in fibre optics practicals, typically in B.Sc and engineering physics, to show how a fibre guides light by total internal reflection and how wide a cone of light it can accept.
- Determining the numerical aperture of an optical fibre from its acceptance angle
- Relating numerical aperture to the acceptance cone of the fibre
- Introducing light guidance by total internal reflection in optical fibres
- Fibre optics practicals in physics and electronics courses
Scope of supply and ordering
The listing covers the fiber optic apparatus for numerical aperture experiments. The light source, fibre, detector, accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation according to the quantity and delivery destination. JaincoLab supplies optics and fibre experiment sets to college physics and electronics laboratories and education projects, and exports to buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What does the fiber optic apparatus measure?
It is used to study the numerical aperture of an optical fibre.
What is numerical aperture?
It is the sine of the half angle of the fibre's input acceptance cone and represents how open that cone is.
