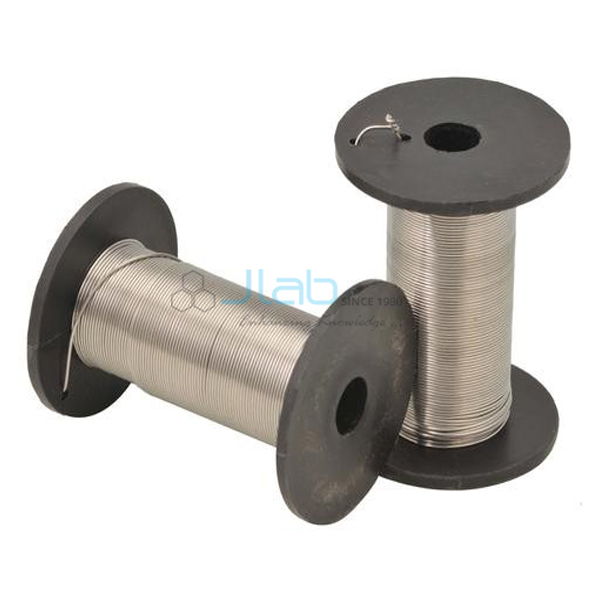

Eureka Bare Wire 34 swg
Product Code : JA-EE-7623
Eureka Bare Wire 34 swg (SKU JA-EE-7623) is the finest eureka gauge in the JaincoLab range: a bare copper-nickel resistance wire of 0.25 mm diameter with a low temperature coefficient, supplied at 125 g per reel. The high resistance per metre of 34 SWG wire suits high-value resistance coils, including bifilar (non-inductive) windings of the kind used in resistance boxes. JaincoLab supplies it to college and school laboratories that make or maintain resistance apparatus.
Specifications
Eureka Bare Wire 34 swg is 0.25 mm in diameter, made of a copper-nickel alloy of low temperature coefficient and supplied bare in 125 g reels, and the listing describes it as suitable for resistance coils.
| Product | Eureka Bare Wire 34 swg |
| SKU | JA-EE-7623 |
| Alloy | Eureka (copper-nickel) |
| Temperature coefficient | Low |
| Gauge | 34 SWG |
| Diameter | 0.25 mm |
| Reel | 125 g |
| Finish | Bare |
| Suitable for | Resistance coils |
Resistance coil work with 34 SWG eureka wire
The 34 SWG eureka wire is used to wind high-value resistance coils in a small space, including bifilar windings in which the wire is doubled back on itself so that the coil has very little inductance, and to replace or add coils in resistance boxes and teacher-built apparatus.
- High-value resistance coils wound in a small space
- Bifilar (non-inductive) resistance coils
- Replacement coils for resistance boxes and teaching apparatus
- The finest gauge in resistance-versus-thickness comparisons
Scope of supply and ordering
Supplied as bare 34 SWG eureka wire, 0.25 mm in diameter, in 125 g reels. Heavier eureka and constantan gauges are separate listings. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation according to the number of reels and the delivery destination. JaincoLab supplies resistance wires to laboratories and workshops singly or in bulk, including education-project and tender orders, and exports to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What diameter is 34 SWG eureka wire?
It is 0.25 mm in diameter and is supplied at 125 g per reel.
Is this the finest eureka wire listed?
Yes. Eureka bare wire is listed from 18 SWG down to this 34 SWG size.
Can it be used for non-inductive coils?
Yes. Like other resistance wires it can be wound bifilar, doubled back on itself, to keep the inductance of a coil low.
Related products
More resistance wires and apparatus are in Electricity Equipment from JaincoLab, a physics lab equipment manufacturer in India.
Request a quote
To order Eureka Bare Wire 34 swg, send the number of reels and the delivery destination through the JaincoLab contact page or email [email protected]. Institutions and contractors buying under a tender can also reach us via the tenders page.
