Electric Motor Kit
Product Code : JA-PLE-4172

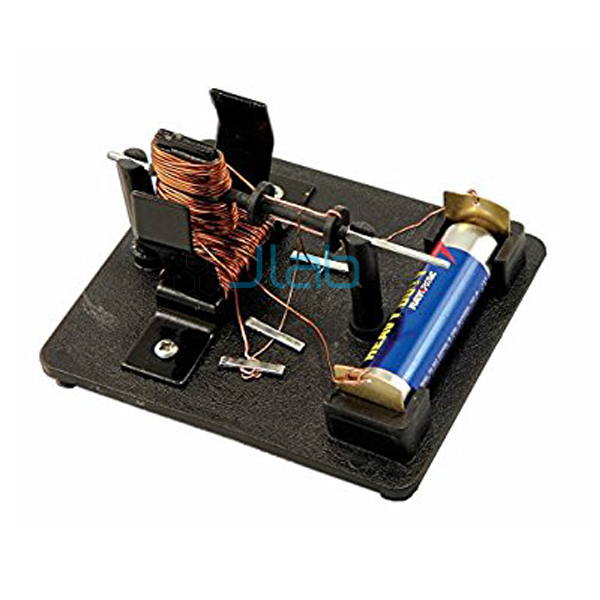

The Electric Motor Kit (SKU JA-PLE-4172) is a class kit from which students build six simple model electric motors using Magnadur magnets, armatures, mild steel yokes and wooden bases. This electric motor kit for students lets a class wind its own armature coils from 26 SWG PVC-covered copper wire and see the motor effect at work, and JaincoLab supplies it for school and college physics practicals.
Specifications
The kit contains 12 Magnadur magnets, 6 armatures, 6 mild steel yokes, 6 wooden support bases and 6 aluminium knitting-needle shafts, with 24 rivets, 12 split pins, a reel of 26 SWG PVC-covered copper wire, 2 reels of cello tape and 30 cm of 2.5 mm bore rubber tubing.
| Product | Electric Motor Kit |
| SKU | JA-PLE-4172 |
| Motors that can be built | 6 |
| Magnets | 12 Magnadur magnets |
| Armatures | 6 |
| Yokes | 6, mild steel |
| Support bases | 6, wooden |
| Shafts | 6 knitting-needle shafts (aluminium) |
| Fixings | 24 rivets, 12 split pins |
| Wire | 1 reel, 26 SWG PVC-covered copper wire |
| Consumables | 2 reels cello tape; 30 cm rubber tubing, 2.5 mm bore |
Applications of the electric motor kit for students
Working in groups, students wind a coil on the armature, fit it on its shaft between two Magnadur magnets held by the steel yoke, connect a low-voltage supply and adjust the contacts until the rotor spins, which shows the motor effect in action.
- Building working model electric motors in class groups
- Demonstrating the force on a current-carrying coil in a magnetic field
- Investigating how the number of turns or the supply voltage affects motor speed
- Project work and science exhibitions on electromagnetism
Scope of supply
The listing covers the kit components listed above for building six motors. Accessories, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of kits and the delivery destination. JaincoLab supplies motor kits for school classes, bulk orders for education programmes and export orders to buyers in Africa, the Middle East and South and South-East Asia.
JaincoLab supports tender contractors as well as institutions: we manufacture and export laboratory equipment for Ministry of Education projects, World Bank-funded tenders and United Nations programmes, executed successfully in many countries, and we specialise in turnkey laboratory set-ups. Contact us through the tenders page early in your bid preparation.
Frequently asked questions
How many motors can be built with one kit?
The kit contains parts for six model electric motors.
Which magnets are supplied?
Twelve Magnadur magnets, two for each motor, with mild steel yokes.
Is winding wire included?
Yes. One reel of 26 SWG PVC-covered copper wire is included.
What should a quotation request include?
Send the SKU JA-PLE-4172, the number of kits and the delivery destination.
