Domestic Heating Circuit Training Panel

Domestic Heating Circuit Training Panel

Product Code : JA-ELA-5441

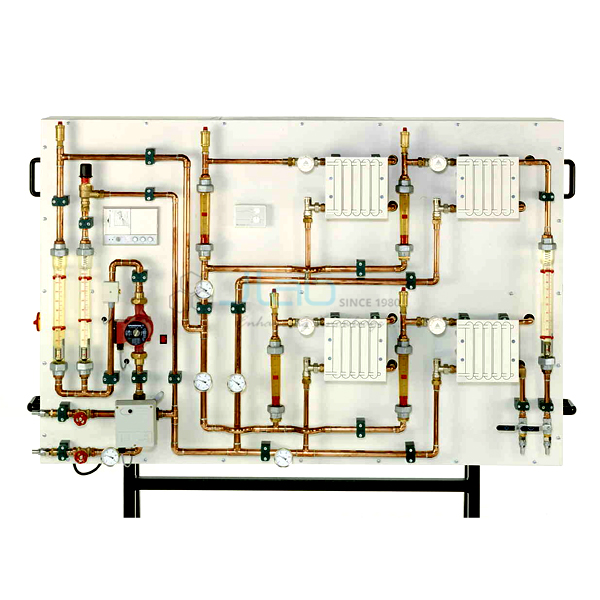

The Domestic Heating Circuit Training Panel (SKU JA-ELA-5441) is a heating and plumbing trainer, supplied by JaincoLab, that shows how a central heating system works. It is built from commonly available commercial components: a heating controller with feed-flow temperature feedback, a 4-way mixing valve, a circulating pump and four plate heat exchangers acting as radiators. Seven rotameters and five bimetallic dial thermometers let trainees follow flows and temperatures around the circuit.

Specifications

The panel components and connection sizes given in the product data are listed below.

ProductDomestic Heating Circuit Training Panel
SKUJA-ELA-5441
ControllerHeating controller with feed-flow temperature feedback
Mixing valve4-way, DN 20
PumpCirculating pump
Flow measurement7 rotameters
Radiators4 plate heat exchangers
Thermometers5 bimetallic dial thermometers
Cold water connections2, DN 15
Boiler water connections2, DN 15
Overflow valve1 differential pressure overflow valve

Training topics

Because the panel is built from the same commercial components found in real installations, the settings and adjustments practised on it carry over directly to site work.

  • Function of a central heating circuit
  • Feed-flow temperature control with a 4-way mixing valve
  • Balancing flow to the radiators using rotameters
  • Role of the differential pressure overflow valve

Scope of supply and ordering

The listing covers the training panel with the components above; the boiler or heat source, water connections, quantity and lead time are confirmed on the quotation.

Frequently asked questions

How many radiators does the panel simulate?
Four, represented by plate heat exchangers.

What size is the mixing valve?
A 4-way mixing valve, DN 20.

How are flow and temperature measured?
With 7 rotameters and 5 bimetallic dial thermometers.

Related products

Heating and ventilation trainers are grouped in the educational laboratory apparatus range.

Request a quote

Send your enquiry for the Domestic Heating Circuit Training Panel (JA-ELA-5441) through the contact page. Tender and project enquiries can be sent through the tenders page.
