Domestic Gas Supply Training Panel
Product Code : JA-ELA-5440

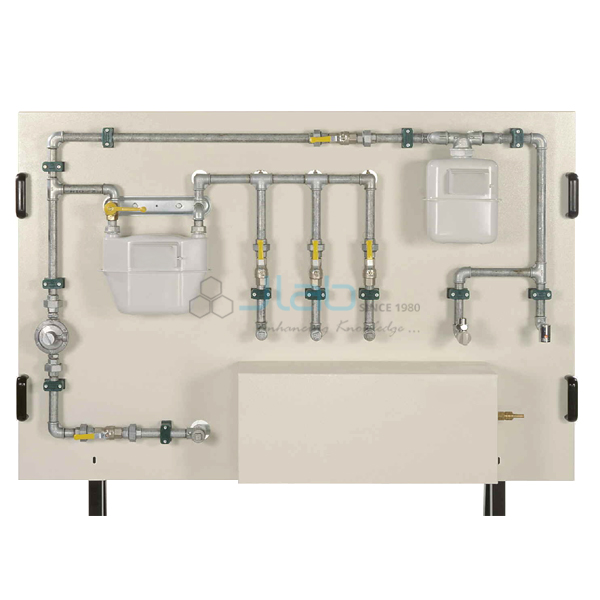

The Domestic Gas Supply Training Panel (SKU JA-ELA-5440) is a panel, supplied by JaincoLab, for practical exercises on domestic gas pipework. It has two individually selectable pipe sections, a gas meter with one connection and another with two connections, a pipe section for finding leaks, and a supply pipe section with gas socket and a gas connection with ball valve. Air and gas pressure controllers and a leak testing device complete the panel.
Specifications
The pressure values listed for the panel are those of its air pressure controller, gas pressure controller and leak testing device.
| Product | Domestic Gas Supply Training Panel |
| SKU | JA-ELA-5440 |
| Pipe sections | 2, individually selectable |
| Gas meters | 1 with 1 connection; 1 with 2 connections |
| Leak finding | 1 pipe section |
| Supply pipe | With gas socket and gas connection with ball valve |
| Air pressure controller | Max. inlet 10 bar; outlet 0.01 to 0.6 bar |
| Gas pressure controller | Admission 350 mbar; outlet 20 mbar |
| Leak testing device | Max. 500 mm WC |
Exercises on the panel
- Reading and connecting single- and two-connection gas meters
- Locating leaks on the prepared pipe section
- Setting and checking gas and air pressure controllers
- Leak testing of pipework with the testing device
Scope of supply and ordering
The listing covers the training panel as described; the air or gas supply connection, installation details, quantity, packing and lead time are confirmed on the quotation.
Frequently asked questions
What pressures do the controllers work at?
The air pressure controller takes up to 10 bar inlet with 0.01 to 0.6 bar outlet; the gas pressure controller takes 350 mbar and delivers 20 mbar.
Can leak finding be practised on the panel?
Yes. It has a pipe section for finding leaks and a leak testing device up to 500 mm WC.
How many gas meters are fitted?
Two: one with a single connection and one with two connections.
