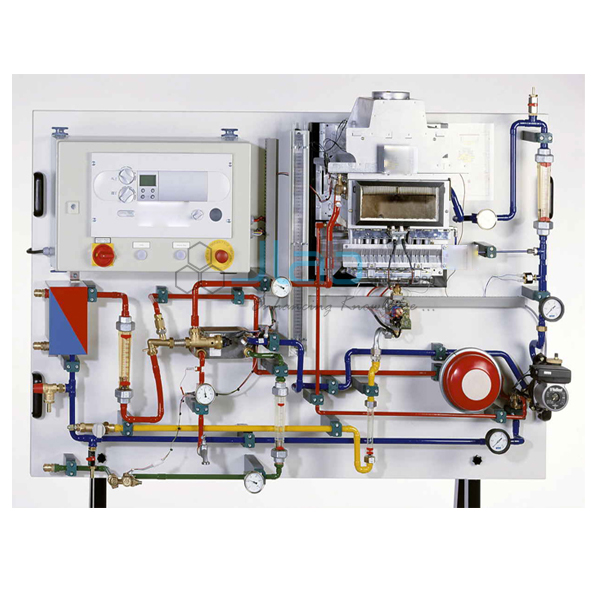

Training Panel Function of Gas Heater
Product Code : JA-ELA-5450
The Training Panel Function of Gas Heater (SKU JA-ELA-5450), supplied by JaincoLab, illustrates how a gas combination water heater works. Its main components are laid out clearly on a panel with a system diagram, and it demonstrates both a heating circuit and domestic hot water heating. A plate heat exchanger simulates a radiator, with cold water fed through it as the heating load, and a sight glass shows the gas flame in the burner.
Specifications
The panel runs on liquid gas (propane) at a connection pressure of 50 mbar, so it does not depend on a natural gas line, and carries thermometers, flow meters and manometers for energy balances.
| Product | Training Panel Function of Gas Heater |
| SKU | JA-ELA-5450 |
| Appliance shown | Gas combination water heater (combination boiler) |
| Layout | Main components on a panel with system diagram |
| Burner | With viewing window (sight glass) for the flame |
| Heating load | Plate heat exchanger as radiator, cooled by cold water |
| Instrumentation | Thermometers, flow meters, manometers |
| Fuel | Propane (liquid gas), connection pressure 50 mbar |
| Mounting | Universal stand, available as an accessory |
Training topics
- Function of a typical combination boiler
- Heating circuit and domestic hot water operation
- Power and efficiency from measured temperatures and flows
- Energy balance of a gas water heater
Scope of supply and ordering
The listing covers the training panel; the universal stand is an optional accessory, and the propane supply, water connection, quantity and lead time are confirmed on the quotation.
Frequently asked questions
Which gas does the panel use?
Liquid gas (propane) at a connection pressure of 50 mbar, so no natural gas line is needed.
How is the heating load created?
A plate heat exchanger simulates a radiator, with cold water fed through it as the load.
Can efficiency be measured?
Yes. Built-in thermometers and flow meters allow power and efficiency to be determined.
