Distillation Apparatus
Product Code : JA-LE-6839

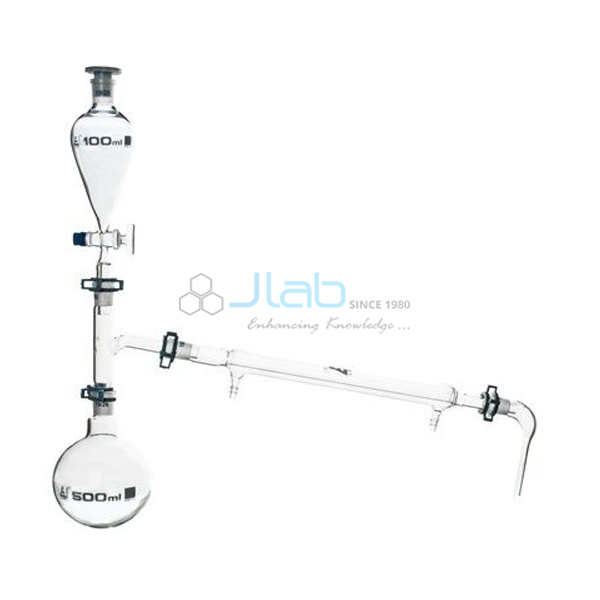

The Distillation Apparatus (SKU JA-LE-6839) is a borosilicate glass set with 19/26 interchangeable joints for simple distillation. It comprises a 500 ml round-bottom boiling flask, a still head, a Liebig condenser, a receiver adapter and a separating funnel with stopper. Glass beakers and metal stands are not included. This distillation set is made by JaincoLab.
Specifications
All joints are 19/26, so the parts can be combined with other 19/26 glassware for related set-ups.
| Product | Distillation Apparatus |
| SKU | JA-LE-6839 |
| Material | Borosilicate glass |
| Joint size | 19/26 |
| Boiling flask | Round-bottom, 500 ml |
| Parts included | Still head, Liebig condenser, receiver adapter, separating funnel with stopper |
| Not included | Glass beaker, metal stands |
Uses of the distillation set
Simple distillation separates a liquid from dissolved solids or from a liquid with a clearly different boiling point, and is one of the first separation techniques taught in practical chemistry.
- Simple distillation of liquid mixtures
- Purifying liquids by boiling point
- Organic chemistry practicals in schools and colleges
- Preparing distilled samples for analysis
Scope of supply and ordering
The listing covers one distillation set with the parts listed, made by JaincoLab. Glass beaker and metal stands are not included; clamps and heat source are confirmed on the quotation, and joint clips are listed separately.
MOQ, lead time and packing are confirmed on each quotation for the quantity and delivery destination. JaincoLab supplies schools, colleges, universities and testing laboratories in India and on export orders to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What joint size is used?
19/26 throughout.
What is the flask capacity?
500 ml round-bottom.
Are stands included?
No, glass beakers and metal stands are not included.
Which condenser is supplied?
A Liebig condenser.
Related products
- Fractional Distillation Assembly
- Liebig Condenser 200mm
- Liebig Condenser 500mm
- Interchangeable Glassware Joint Clips 10/19 Red
See the rest of Lab Equipment or the full chemistry lab equipment range.
Request a quote
To request a quotation for the distillation apparatus, send the quantity and the delivery destination through the JaincoLab contact page or email [email protected]. Institutions and contractors buying under a tender can also reach us via the tenders page.
