Disintegrator
Product Code : JA-PLE-2249

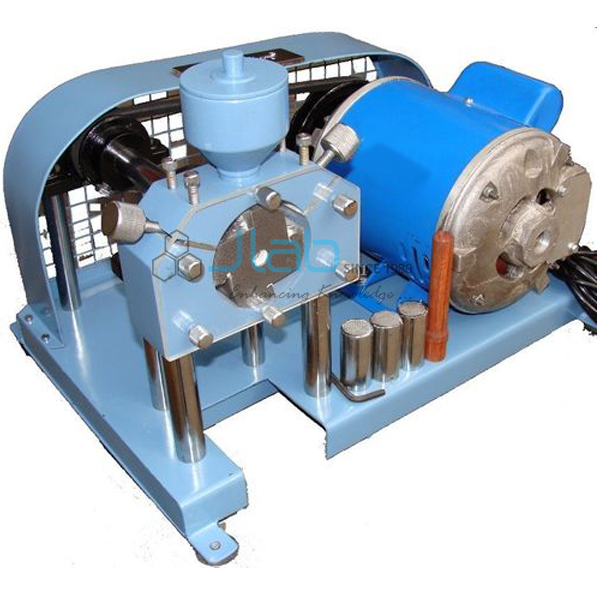

The Disintegrator (SKU JA-PLE-2249) is a hammer-type mill that reduces dry materials to a smaller particle size in pharmacy college laboratories. This hammer mill disintegrator has four steel hammers on a disc turning at about 3000 RPM inside a drum, a highly polished 2 in hopper and coarse, medium and fine mesh screens, and runs on a 220 V AC, 50 Hz single-phase motor. JaincoLab makes it for size-reduction work in pharmaceutics labs.
Specifications
The disintegrator has a highly polished hopper of 2 in diameter, four steel hammers fixed to a 1.5 in disc on a shaft turning at approximately 3000 RPM, hammers enclosed in a drum, a lower section taking coarse, medium or fine mesh screens, and a 220 V AC, 50 Hz single-phase motor.
| Product | Disintegrator |
| SKU | JA-PLE-2249 |
| Hopper | Highly polished, 2 in diameter |
| Hammers | 4 steel hammers fixed to a disc of 1.5 in diameter |
| Shaft speed | Approximately 3000 RPM |
| Grinding chamber | Hammers enclosed in a drum |
| Screens | Coarse, medium and fine mesh screens, supplied |
| Motor | 220 V AC, 50 Hz, single phase |
Applications of the hammer mill disintegrator
Pharmacy colleges use the disintegrator to reduce dried crude drugs, granules and other dry materials to a controlled size, choosing the coarse, medium or fine screen to set the product size, and to demonstrate impact size reduction in pharmaceutical engineering practicals.
- Size reduction of dried crude drugs before extraction
- Milling dry materials to coarse, medium or fine size with the supplied screens
- Demonstrating hammer-mill size reduction in pharmaceutical engineering practicals
- Preparing powders for sieving and particle size studies
Scope of supply and ordering
The listing covers one disintegrator with its polished hopper, four-hammer disc and drum, 220 V single-phase motor and the coarse, medium and fine mesh screens supplied with the equipment. Accessories, spares and quantities are confirmed on the quotation.
Packing, lead time and minimum order quantity for the disintegrator are confirmed on each quotation according to the quantity and the delivery destination. JaincoLab supplies single mills for a pharmacy college, bulk orders for institutions equipping several labs, and export consignments to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
How fast does the disintegrator run?
The shaft carrying the hammer disc revolves at approximately 3000 RPM.
Which screens are supplied?
Coarse, medium and fine mesh screens are supplied with the equipment and fit in the lower portion.
What power supply does it need?
It has a motor for 220 V AC, 50 Hz, single phase.
Related products
Browse the JaincoLab range of pharmacy lab equipment for size reduction, sieving and dosage-form practicals.
Request a quote
To order the Disintegrator, send the quantity and delivery destination through the JaincoLab contact page or email [email protected]. Tender and project enquiries can be sent through the tenders page.
