Gas Chromatography Model for Analysis
Product Code : JA-PLE-6450

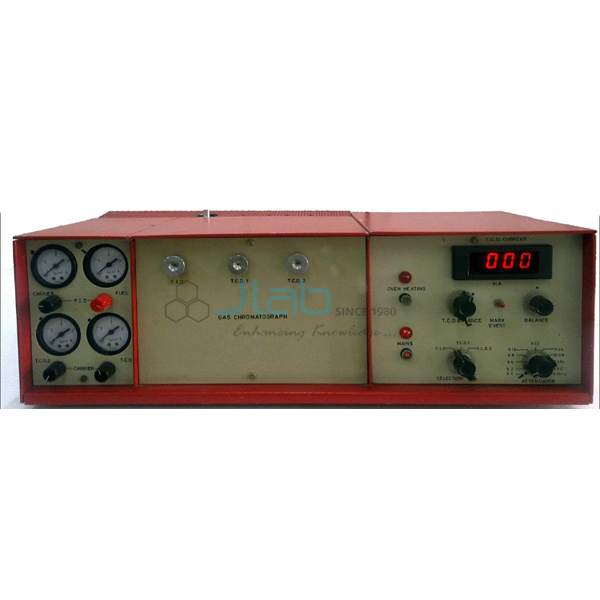

The Gas Chromatography Model for Analysis (SKU JA-PLE-6450) is a dedicated gas chromatograph for dissolved gas analysis of transformer oil (TOGA), a test used to detect internal faults in power transformers while they are in service. This transformer oil gas chromatograph has three injectors, one FID and two TCDs, and is listed with the spares and accessories for this analysis. It is supplied by JaincoLab to power-sector, testing and research laboratories.
Specifications
The instrument has three injectors, one flame ionisation detector and two thermal conductivity detectors: the FID detects methane, ethylene, ethane and acetylene, TCD-1 detects carbon dioxide and TCD-2 detects hydrogen, and the system is listed with the spares and accessories needed for the analysis.
| Product | Gas Chromatography Model for Analysis |
| SKU | JA-PLE-6450 |
| Application | Dissolved gas analysis of transformer oil (TOGA) |
| Injectors | Three |
| Detectors | One FID and two TCD |
| FID | Methane, ethylene, ethane and acetylene |
| TCD-1 | Carbon dioxide |
| TCD-2 | Hydrogen |
| Spares offered | Gas extraction apparatus and gas-tight syringes |
Applications of the transformer oil gas chromatograph
Dissolved gas analysis is used as a diagnostic tool for power transformers in service: the gases dissolved in an oil sample are extracted and measured, and changes in their levels point to internal faults, so the instrument serves utility, transformer-maker and testing laboratories.
- Routine dissolved gas analysis of transformer oil samples
- Measuring methane, ethylene, ethane and acetylene on the FID
- Measuring carbon dioxide on TCD-1 and hydrogen on TCD-2
- Testing and research laboratories in the power sector
Scope of supply and ordering
The listing covers the dedicated gas chromatograph with three injectors, one FID and two TCDs, together with the spares and accessories listed for transformer oil analysis; a gas extraction apparatus and gas-tight syringes are also offered as spares. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the configuration and the delivery destination. JaincoLab supplies single systems to testing, utility and research laboratories and quotes export orders to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Which gases does it measure?
The FID detects methane, ethylene, ethane and acetylene, TCD-1 detects carbon dioxide and TCD-2 detects hydrogen.
How many injectors and detectors does it have?
It has three injectors, one FID and two TCDs, dedicated to transformer oil dissolved gas analysis.
Which spares are offered?
A gas extraction apparatus and gas-tight syringes are offered as spares; the exact set supplied is confirmed on the quotation.
