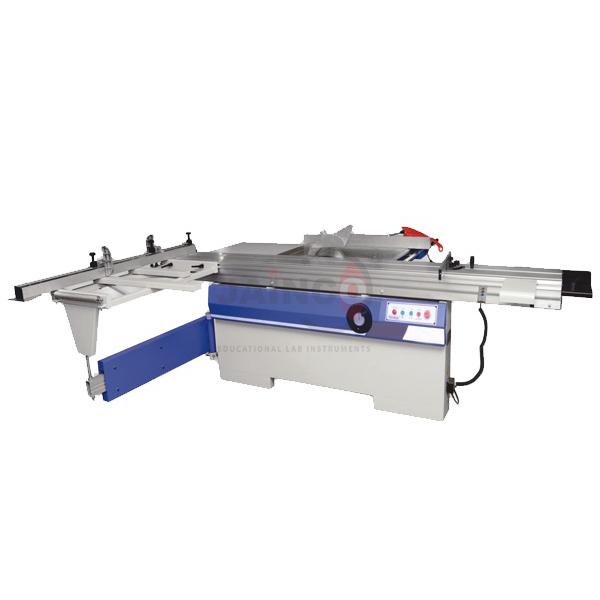

Dimension Saw Machine
Product Code : JA-WWPT-8703
The dimension saw machine is a sliding-table panel saw for cutting boards and panels to size in joinery workshops. It has a 3000 x 320 mm sliding table with 3000 mm cross-cut capacity, 1250 mm rip width, a 300 mm main blade on a 30 mm spindle at 4000/6000 rpm tilting 0 to 45°, a 3 kW main motor and a 120 mm scoring saw on a 1.1 kW motor (SKU JA-WWPT-8703).
Specifications
Listed specification:
| Product | Dimension Saw Machine |
| SKU | JA-WWPT-8703 |
| Sliding table | 3000 x 320 mm |
| Cross-cut capacity | 3000 mm |
| Rip width (blade to fence) | 1250 mm |
| Main saw blade | 300 mm diameter (250 to 300 mm) |
| Height of cut (300 mm blade) | 80 mm |
| Main spindle | 30 mm; 4000/6000 rpm |
| Blade tilt | 0 to 45° |
| Main motor | 3 kW |
| Scoring saw | 120 mm blade; 7000 to 8000 rpm; 1.1 kW motor |
| Features | Quick-release cross-cut fence; sliding table; cast-iron cradle for the saw carriage; handwheel height and tilt adjustment; manual scorer adjustment; tilt index; overhead saw guard |
Scope of supply and ordering
The listing covers one dimension saw machine, supplied by JaincoLab; saw blades are quoted separately. Quantities, packing and delivery lead time are stated on each quotation.
Frequently asked questions
What is the rip capacity?
1250 mm between the saw blade and the rip fence.
Does it have a scoring saw?
Yes, a 120 mm scoring saw with its own 1.1 kW motor and manual adjustment.
How deep can it cut?
80 mm with a 300 mm main blade.
