Digital Lab
Product Code : JA-BT-1481

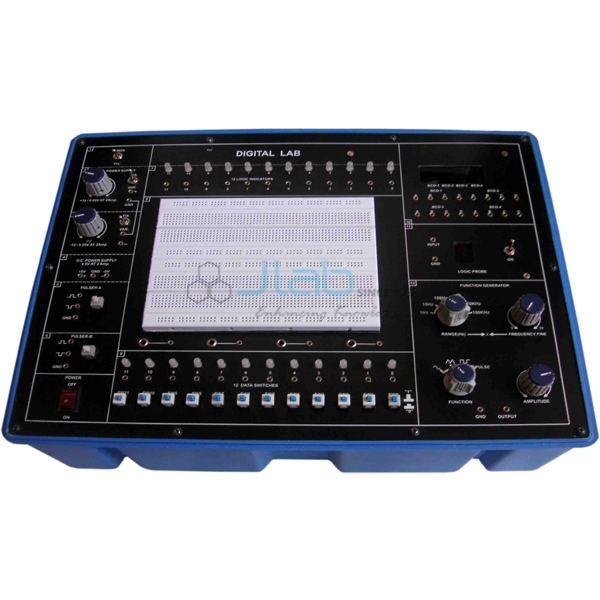

The digital lab is a compact breadboard trainer for building regular digital circuits with solder-less interconnections, with clock generators, logic level input and output indicators and DC regulated power supplies built in. Its 2 mm brass terminals accept optional modules, and the listed experiments run from logic gates and code converters to counters, shift registers and CMOS-TTL interfacing (SKU JA-BT-1481).
Specifications
The digital lab is listed with:
| Product | Digital Lab |
| SKU | JA-BT-1481 |
| Circuit building | Solder-less breadboard interconnections |
| Terminals | 2 mm brass terminals and patch cords, compatible with optional modules |
| Built in | Clock generators; logic level input and output indicators; DC regulated power supplies |
| Supplied with | Enclosure, mains cord, patch cords, instruction manual and component set |
| Weight | 0.7 kg approx. |
| Dimensions | W 176 x H 131 x D 37 mm |
Experimental coverage
The listed experiments include:
- Logic gate operation, dual nature of logic gates and De Morgan's theorem
- Binary to Gray, Gray to binary and binary to excess-3 code conversion
- Binary adder, subtractor and multiplier; EX-OR gate implementation and applications
- RS, JK, D and T flip-flops; Johnson counter; 4-bit binary up/down counter
- Multiplexer and demultiplexer; 8-to-3 line encoder; 3-to-8 line decoder
- SIPO shift register; CMOS-TTL interfacing; crystal oscillator; pulse stretcher circuit
Scope of supply and ordering
The listing covers the digital lab with its mains cord, patch cords, instruction manual and component set, supplied by JaincoLab; optional modules are quoted separately. Order quantity, packing and delivery time are set out on each quotation.
Frequently asked questions
What is supplied with the digital lab?
The trainer in its enclosure with a mains cord, patch cords, an instruction manual and a component set.
Can extra modules be connected?
Yes. The 2 mm brass terminals and patch cords make it compatible with the optional modules.
How large is the digital lab?
About W 176 x H 131 x D 37 mm, weighing about 0.7 kg.
Related products
See the breadboard trainer range for other items in this family.
Request a quote
Request a quotation for the Digital Lab (SKU JA-BT-1481) through the JaincoLab contact page. Tender and project enquiries can be sent through the tenders page.
