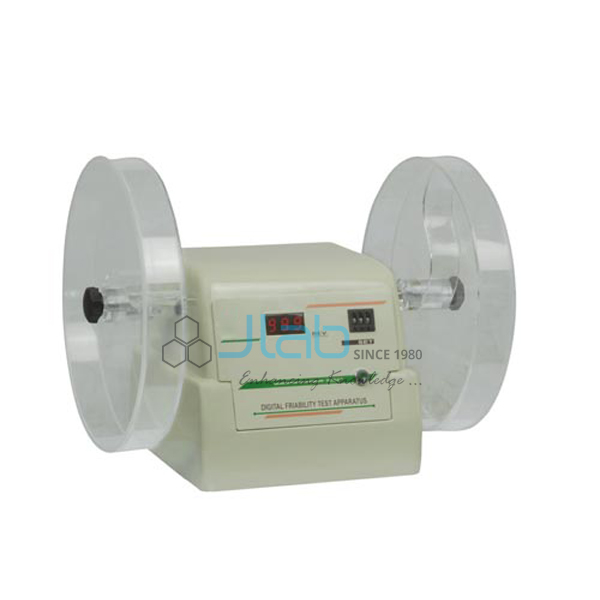

Digital Friability Test Apparatus
Product Code : JA-FTA-2216
The Digital Friability Test Apparatus (SKU JA-FTA-2216) tests the abrasion resistance of tablets. Transparent acrylic drums turn at 25 ±1 rpm, and an arm in each drum lifts the tablets to a set height and lets them fall on every turn. This digital friability test apparatus has a revolution counter preset by thumbwheel and is supplied by JaincoLab in 1 drum and 2 drum assemblies.
Specifications
The counter reads 0 to 999 revolutions on a 3-digit red LED at 1 revolution resolution and ±1 revolution accuracy, the drums run at 25 ±1 rpm, and the unit works at 10 to 50 °C ambient on 230 V AC.
| Product | Digital Friability Test Apparatus |
| SKU | JA-FTA-2216 |
| Drum speed | 25 ±1 rpm |
| Drums | Transparent acrylic with lifting arm; 1 drum or 2 drum assembly |
| Counter range | 0 to 999 revolutions |
| Resolution | 1 revolution |
| Accuracy | ±1 revolution |
| Preset | Thumbwheel switch for the required number of rotations |
| Display | 3-digit red 7-segment LED |
| Operating temperature | 10 to 50 °C |
| Power | 230 V ±10% AC, 50 Hz |
| Dimensions | 230 mm (H) x 250 mm (W) x 540 mm (L) approx. |
| Weight | 9.5 kg approx. |
| Accessories listed | Drum (1 or 2 nos.), dust cover |
Applications of the digital friability test apparatus
A fixed 25 rpm drum and a preset revolution count give the repeatable tumbling needed to compare friability between tablet batches and formulations.
- Friability testing of tablets in pharmaceutical quality control
- Tablet evaluation practicals in B.Pharm and D.Pharm pharmaceutics
- Comparison of tablet formulations during development
- Teaching demonstrations of tablet mechanical strength
Scope of supply and ordering
The listing covers the digital friability test apparatus in the 1 drum or 2 drum assembly with dust cover. The drum lid comes off by unscrewing one knob. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the drum version, number of units and the delivery destination. JaincoLab supplies single units and laboratory sets for pharmacy colleges and tender orders.
Frequently asked questions
At what speed do the drums turn?
25 ±1 rpm.
How is the number of rotations set?
With a thumbwheel switch; a 3-digit LED counter shows 0 to 999 revolutions.
Is a single-drum version available?
Yes. It is listed in 1 drum and 2 drum assemblies.
Related products
- Microprocessor Friability Apparatus
- Disintegration Test Machine
- Tablet Dissolution Test Apparatus
- Bulk Density Apparatus
Friability testers are grouped in the JaincoLab friability test apparatus range.
Request a quote
To order the Digital Friability Test Apparatus, send the number of drums, quantity and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-FTA-2216. For tender or project supply, see our tenders page.
