Darcys Law Apparatus
Product Code : JA-ELA-5531

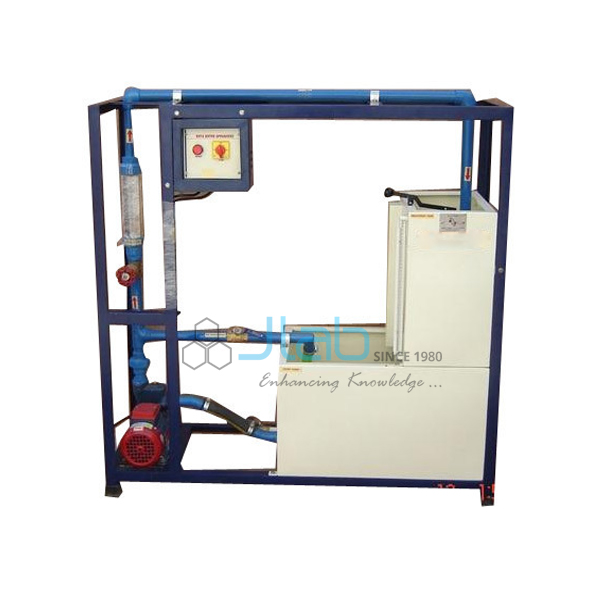

The Darcys Law Apparatus (SKU JA-ELA-5531) is a fluid mechanics set-up made by JaincoLab for verifying Darcy's law and finding the coefficient of permeability of a porous medium. Water flows through a clear acrylic cylindrical test section in a pipeline; pressure tappings on the test section lead to a differential manometer, and the flow rate is found with a measuring tank and stopwatch. The unit is self-contained, recirculating water from a sump tank with a centrifugal pump.
Specifications
The test section, flow circuit and measuring arrangement listed are shown below.
| Product | Darcys Law Apparatus |
| SKU | JA-ELA-5531 |
| Test section | Clear acrylic, cylindrical, in the pipeline |
| Water circuit | Closed loop: sump tank and centrifugal pump |
| Flow control | Flow control valve and bypass valve; downstream valves to regulate flow |
| Flow measurement | Measuring tank and stopwatch |
| Pressure measurement | Pressure tappings to a differential manometer |
| Materials | Stainless steel tanks and wetted parts; painted structure |
| Format | Compact, stand-alone set-up |
Experiments
Darcy's law states that the flow rate through a porous medium is proportional to the hydraulic gradient across it; the constant of proportionality gives the coefficient of permeability.
- Verifying the linear relation between flow rate and head loss
- Finding the coefficient of permeability of the porous medium
- Repeating the test at several flow rates set with the valves
Scope of supply and ordering
The apparatus is supplied as a complete recirculating unit; the porous medium, stopwatch, electrical supply details, quantity and packing are confirmed on the quotation.
Frequently asked questions
How is the flow rate measured?
With the measuring tank and a stopwatch.
How is the pressure difference measured?
Pressure tappings on the test section are connected to a differential manometer.
Does it need a continuous water supply?
No. It is a closed-loop unit that recirculates water from its sump tank.
Related products
Fluid mechanics and soil testing items are in the educational laboratory apparatus range.
Request a quote
Request a quotation for the Darcys Law Apparatus (JA-ELA-5531) through the contact page. Institutions and contractors buying under a tender can also reach us via the tenders page.
