Circuit Board
Product Code : JC-SL-5801

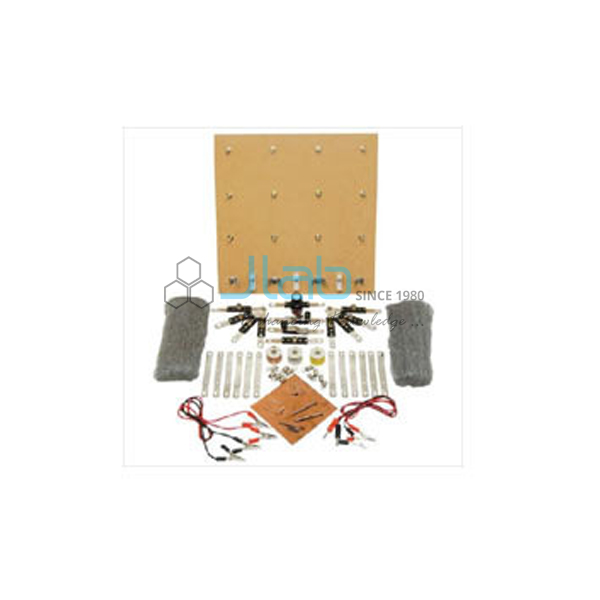

The Circuit Board (SKU JC-SL-5801) is a circuit-building set for school electricity practicals. A base board with connection holes takes plug-in connectors carrying 9 lamp holders, a rheostat and 2 push switches, and the set adds crocodile leads, reels of bare copper, eureka and plastic-covered copper wire, a rectifier, a resistor, pencil leads, copper foil, soft iron nails and ten 1.25 V lamps, so students can build and test a wide range of circuits.
Specifications
The listed contents are set out below.
| Product | Circuit Board |
| SKU | JC-SL-5801 |
| Base board | 1, with connection holes |
| Lamp holders | 9, mounted on connectors |
| Rheostat | 1, mounted on a connector |
| Push switches | 2, mounted |
| Connectors | 12 plain |
| Crocodile leads | 2 crocodile connectors with lead; 2 leads, crocodile to 4 mm plug |
| Crocodile clips | 2 |
| Wire | 1 reel bare copper, 1 reel bare eureka, 1 reel plastic-covered copper |
| Other parts | 1 rectifier, 1 resistor, 4 pencil leads, 1 hardboard disc, 1 piece of steel wool, 1 copper foil 150 mm square, 2 soft iron nails |
| Lamps | 10, 1.25 V |
Circuits students can build
- Series and parallel lamp circuits, comparing brightness
- Controlling current with the rheostat and the push switches
- Testing conductors and insulators, including pencil leads and eureka wire as resistances
- Making a simple electromagnet by winding covered wire on a soft iron nail
Scope of supply and ordering
The set is supplied with the parts listed above. Replacement lamps, quantities and packing are confirmed on the quotation.
Frequently asked questions
How many lamp holders are on the Circuit Board?
9 lamp holders, mounted on connectors, with ten 1.25 V lamps.
Which wires are included?
One reel each of bare copper, bare eureka and plastic-covered copper wire.
What switches and controls are included?
Two push switches and one rheostat, each mounted for use on the board.
Related products
Electricity apparatus is listed in our school lab equipment range.
Request a quote
Send the number of Circuit Board sets needed via our contact page. Tender and project enquiries can be sent through the tenders page.
