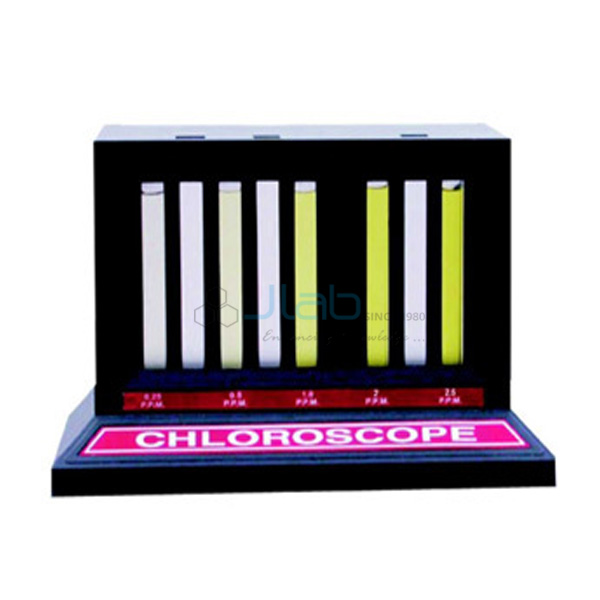

Chloroscope
Product Code : JA-ELA-5426
The Chloroscope (SKU JA-ELA-5426), also listed as a chlorine test kit, is a colour comparator made by JaincoLab for checking residual chlorine in drinking water from 0.25 to 2.0 ppm. A 5 ml water sample is treated with one or two drops of o-tolidine reagent, left ten minutes for the colour to develop, and matched against the colour standards to read the chlorine level from the ppm scale on the front. It is used by public health departments, water testing labs, swimming pools and industrial labs.
Specifications
The chloroscope reads residual chlorine from 0.25 to 2.0 ppm by colour comparison, with three holes for the test tube and a ppm scale marked on the front.
| Product | Chloroscope |
| SKU | JA-ELA-5426 |
| Parameter | Residual chlorine in drinking water |
| Range | 0.25 to 2.0 ppm |
| Method | Colour comparison after adding o-tolidine reagent |
| Sample volume | 5 ml (test tube mark) |
| Colour development | 10 minutes |
| Reading | Tube placed in the 1st, 2nd or 3rd hole; ppm scale on the front |
| Standard set | Chloroscope 1; square unbreakable test tubes 2; glass dropper with rubber teat 1; o-tolidine reagent 125 ml |
How the chlorine test is done
- Fill the test tube with the water sample to the 5 ml mark
- Add 1 to 2 drops of o-tolidine solution with the dropper and shake well
- Leave the tube for ten minutes for the colour to develop
- Insert the tube in the 1st, 2nd or 3rd hole, match the colour and read ppm from the scale
- Empty the tube and clean it with fresh water and a brush
Scope of supply and ordering
The standard set contains the chloroscope, two square unbreakable test tubes, a glass dropper with rubber teat and 125 ml of o-tolidine reagent; refill reagent, quantity, packing and lead time are confirmed on the quotation.
Frequently asked questions
What chlorine range does the Chloroscope measure?
Residual chlorine from 0.25 to 2.0 ppm in drinking water.
How long does the colour take to develop?
About ten minutes after adding 1 to 2 drops of reagent to the 5 ml sample.
What comes in the standard set?
One chloroscope, two square unbreakable test tubes, one glass dropper with rubber teat and 125 ml of o-tolidine reagent.
Related products
- Bacteriological Test Vials
- Digital pH, Conductivity & Temperature Meter
- Portable Dissolved Oxygen Meter
- Color Target Comparator
Water analysis apparatus is in the educational laboratory apparatus range.
Request a quote
For the Chloroscope (JA-ELA-5426) and refill reagent, send your quantities through the contact page. Buying under a laboratory tender? Use our tenders page.
