Charging and Discharging of condensor
Product Code : JA-VOVLACOS-1105

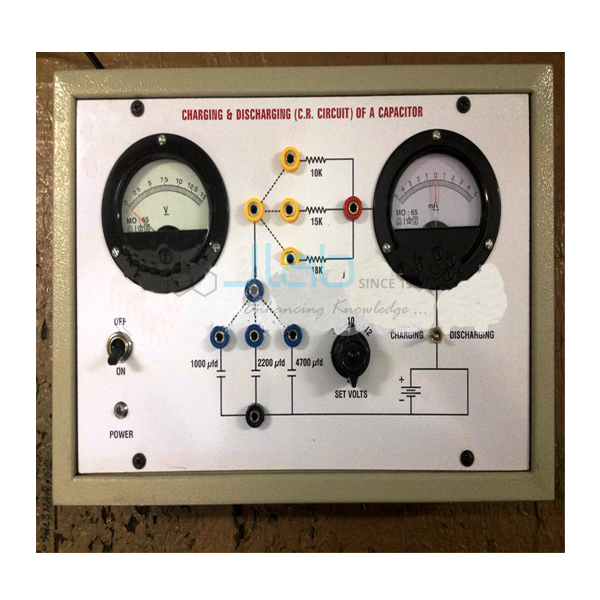

The Charging and Discharging of Condensor apparatus (SKU JA-VOVLACOS-1105) is used to study the RC time constant with different sets of resistances and capacitors. A DC power supply with a selector switch gives different charging voltages, a microammeter follows the current as the capacitor charges and discharges, and the circuit diagram is printed on the panel with terminals for connecting the chosen R and C. A set of resistor-capacitor combinations is supplied.
Specifications
The listing gives these details:
| Product | Charging and Discharging of condensor |
| SKU | JA-VOVLACOS-1105 |
| Power supply | DC, with voltage selector switch |
| Meter | One microammeter |
| Panel | Circuit diagram printed |
| Terminals | For different R and C values |
| Supplied with | Set of resistor-capacitor combinations |
| Size | 8 x 6 x 3 in |
Scope of supply and ordering
Supplied with its set of resistor-capacitor combinations. Quantities and packing are confirmed on the quotation.
Frequently asked questions
What does this apparatus measure?
The RC time constant, from the charging and discharging current of a condenser.
Are resistors and capacitors included?
Yes, a set of resistor-capacitor combinations is supplied.
