Calibration of Voltmeter & Ammeter
Product Code : JA-SI-8126

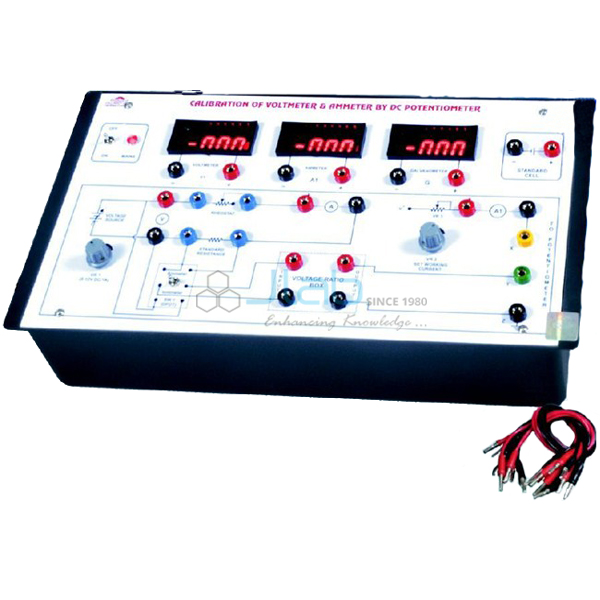

The Calibration of Voltmeter and Ammeter unit (SKU JA-SI-8126) brings together what is needed to standardise a DC potentiometer and then calibrate a voltmeter and an ammeter against it. Three digital panel meters serve as the voltmeter (V), the ammeter (A) and the galvanometer (G), and a standard cell and a 0-12 V DC, 1 A power supply are built in. The circuit diagram is printed on the front panel beside the input and output sockets.
Specifications
Parts of the unit as listed:
| Product | Calibration of Voltmeter & Ammeter |
| SKU | JA-SI-8126 |
| Voltmeter | DPM for voltage measurement (V) |
| Ammeter | DPM for current measurement (A) |
| Galvanometer | DPM used as galvanometer (G) |
| Standard cell | In-built |
| Power supply | In-built, 0-12 V DC at 1 A |
| Panel | Circuit diagram with input and output sockets |
| Supplied with | Bunch of connecting leads |
Experiments on the calibration unit
- Standardisation of a DC potentiometer
- Calibration of a voltmeter using a DC potentiometer
- Calibration of an ammeter using a DC potentiometer
Scope of supply and ordering
The unit comes with its connecting leads; the potentiometer itself is a separate item. Quantities and packing are confirmed on the quotation.
Frequently asked questions
Does the calibration unit need a separate standard cell?
No, a standard cell is built in, along with a 0-12 V DC 1 A supply.
Which meters are on the unit?
Three digital panel meters: voltmeter, ammeter and one used as the galvanometer.
