Basic Acrylic Lens Set
Product Code : JL-LEP-10348

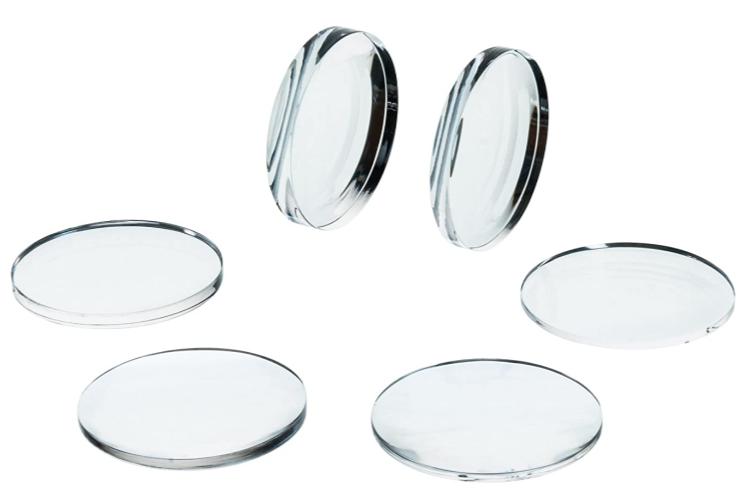

The Basic Acrylic Lens Set (SKU JL-LEP-10348) is a set of seven acrylic lenses, six of 50 mm diameter and one large 75 mm double convex lens, kept in a compartmentalised storage box for demonstrating the refraction of light. With this acrylic lens set students compare converging and diverging lenses, find focal points and form images in school optics practicals. JaincoLab manufactures it in India for science and physics laboratories.
Specifications
The acrylic lens set holds seven acrylic lenses in a compartmentalised storage box: double convex, plano-convex, double concave, plano-concave, convex-concave and concave-convex lenses of 50 mm diameter (±2 mm), and a large 75 mm double convex lens.
| Product | Basic Acrylic Lens Set |
| SKU | JL-LEP-10348 |
| Purpose | Demonstrates refraction of light |
| Set size | 7 lenses |
| Material | Acrylic |
| Storage | Secured in a compartmentalised storage box |
| Double convex lens | 1 piece, 50 mm diameter ±2 mm |
| Plano-convex lens | 1 piece, 50 mm diameter ±2 mm |
| Double concave lens | 1 piece, 50 mm diameter ±2 mm |
| Plano-concave lens | 1 piece, 50 mm diameter ±2 mm |
| Convex-concave lens | 1 piece, 50 mm diameter ±2 mm |
| Concave-convex lens | 1 piece, 50 mm diameter ±2 mm |
| Large double convex lens | 1 piece, 75 mm diameter ±2 mm |
| Specification reference | As per DepEd guidelines |
Applications of the acrylic lens set
The lens set is used in optics lessons to show how differently shaped lenses bend light, so that students can sort lenses into converging and diverging types, trace rays through them and relate lens shape to focal length.
- Comparing converging (convex) and diverging (concave) lenses with a ray box or parallel light
- Estimating the focal length of the convex lenses by focusing a distant object
- Forming real images on a screen with the large 75 mm double convex lens
- Showing how the meniscus lenses differ from double and plano lenses
- Refraction and lens practicals in lower and upper secondary science and physics
Scope of supply and ordering
The listing covers the seven acrylic lenses and the compartmentalised storage box described in the specification table. Accessories, spares and quantities are confirmed on the quotation.
For the lens set, MOQ, lead time and packing are confirmed on the quotation according to the number of sets and the delivery destination. Orders are handled for single physics laboratories, several schools at once and export customers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Which lenses are in the Basic Acrylic Lens Set?
Double convex, plano-convex, double concave, plano-concave, convex-concave and concave-convex lenses of 50 mm diameter, plus a large 75 mm double convex lens.
What are the lenses made of?
All seven lenses are made of acrylic.
How are the lenses stored?
They are secured in a compartmentalised storage box.
What is the diameter tolerance?
Each lens is within ±2 mm of its stated diameter.
