Bar Breaking Apparatus
Product Code : JA-FMDE-7726

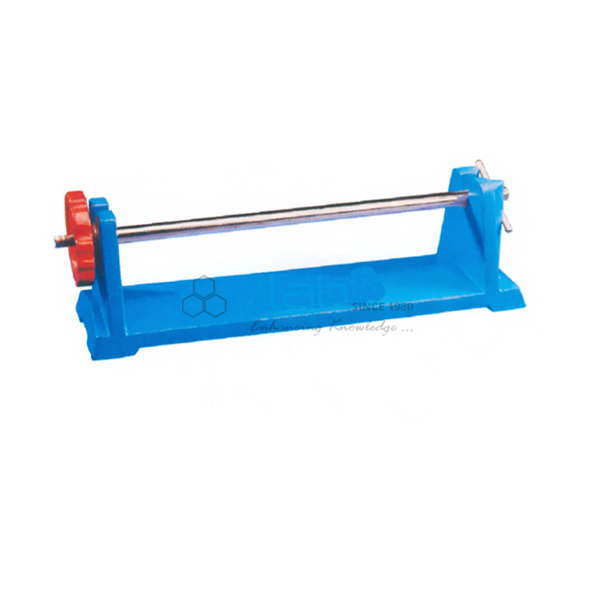

The Bar Breaking Apparatus (SKU JA-FMDE-7726) shows the large forces that can be exerted when a metal bar expands on heating or contracts on cooling. A stout iron bar sits in the slotted end pillars of a heavy cast iron frame, 340 × 120 × 100 mm; one end is threaded for a large tensioning nut and the other has holes for a cast iron breaking bar, which snaps as the heated bar cools. JaincoLab supplies it with a pack of ten breaking bars.
Specifications
The apparatus comprises a heavy cast iron frame of 340 × 120 × 100 mm with slotted end pillars, a stout iron bar threaded at one end for a large tensioning nut and drilled at the other to take the cast iron breaking bars, and a pack of ten breaking bars.
| Product | Bar Breaking Apparatus |
| SKU | JA-FMDE-7726 |
| Frame | Heavy cast iron, 340 × 120 × 100 mm, with slotted end pillars |
| Main bar | Stout iron bar, threaded at one end for a large tensioning nut |
| Breaking bar mounting | Holes at the other end of the main bar |
| Breaking bars | Cast iron, pack of ten supplied |
| Purpose | Showing the forces exerted during thermal expansion or contraction |
Demonstrating the force of thermal expansion and contraction
In the classic demonstration the iron bar is heated strongly, the tensioning nut is tightened and a cast iron breaking bar is fitted; as the bar cools and contracts it pulls so hard that the breaking bar snaps, showing why bridges and railway lines need expansion gaps.
- Force exerted by a contracting bar as it cools
- Force exerted by an expanding bar when heated (with the bar fitted accordingly)
- Explaining expansion gaps in bridges, rails and pipelines
- School lessons on thermal expansion of solids
Scope of supply and ordering
The apparatus is supplied with a pack of ten cast iron breaking bars. A burner for heating is not part of the listing. Extra packs of spare bars are listed separately, and accessories and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation according to the quantity and the delivery destination. JaincoLab supplies heat and expansion apparatus to schools, colleges and education projects, and exports to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What does the Bar Breaking Apparatus demonstrate?
The forces that can be exerted during thermal expansion or contraction of a metal bar.
What are the frame dimensions?
The heavy cast iron frame measures 340 × 120 × 100 mm.
Are breaking bars included?
Yes. The apparatus is supplied with a pack of ten cast iron breaking bars, and spare packs are listed separately.
